Socket
Socket
- Horizontal mounting
- With internal thread
- For small warning / flashing light
- Including seal for protection class IP65
| Device type: | Holder / Housing |
|---|---|
| Color: | Gray |
| Connection: | inner thread |
| Installation: | Directly on the luminaire to enable combination with mounting accessories |
| Protection class: | IP65 |
| Weight: | 0.01kg |

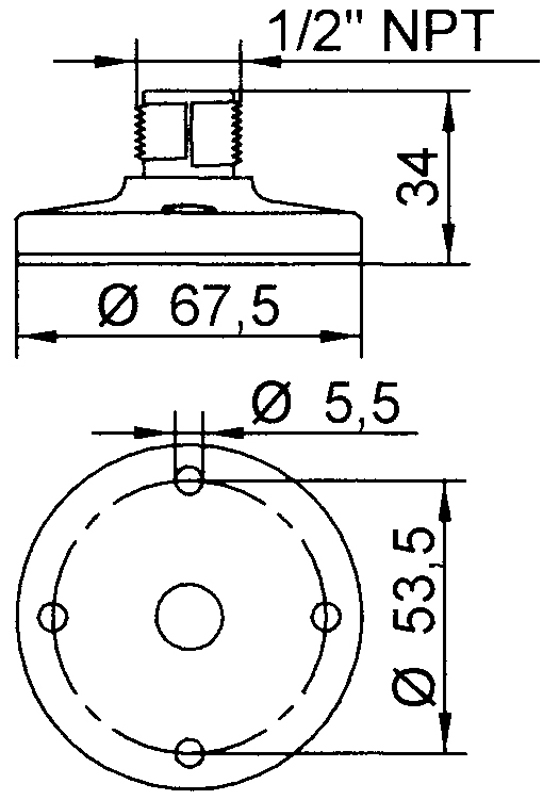

The adapter base is used to mount small warning and flashing lights in a horizontal position and is screwed directly onto the light, which is necessary to enable it to be combined with the other accessories. The product is made of sturdy PA66 plastic and is supplied with a sealing ring that gives the base an IP65 protection rating.
Note:
Mandatory accessories: Mounting base (item no. 38001 or item no. 38004 or item no. 38005)
Optional accessories:
Extension tube (order no. 38003)
Please order separately !
The mounting base is used to mount small warning and flashing lights in a horizontal position. The product is made of sturdy PA66 plastic and is supplied with a sealing ring that gives the base an IP65 protection rating. Note: Mandatory accessories: Adapter base (item no. 38002) Optional accessories: Extension tube (item no. 38003) Please order separately in each case!
The extension tube is used to attach small warning and flashing lights. The product is made of sturdy PA66 plastic and is supplied with a sealing ring that gives the extension IP65 protection.
The mounting bracket is used to mount small warning and flashing lights in a vertical position (wall mounting) and has a single connection. The product is made of sturdy PA66 plastic and is supplied with a sealing ring that gives the base an IP65 protection rating.
The mounting bracket is used to mount small warning and flashing lights in a vertical position (wall mounting) and has two connections. The product is made of sturdy PA66 plastic and is supplied with a sealing ring that gives the base an IP65 protection rating. Note: Mandatory accessories: Adapter base (item no. 38002) Optional accessories: Extension tube (item no. 38003) Please order separately !
Our low-cost warning light module is the ideal solution for standard applications where a reliable warning effect and uniform all-round radiation (360°) are required. This versatile module has been developed to accommodate both incandescent and LED lamps in the 12 to 240 V (5 W) range. The robust construction with lamp lenses and housing made of impact-resistant, self-extinguishing polycarbonate ensures high durability and resistance. The warning light module has an IP65 protection rating and belongs to protection class II, which offers additional safety and reliability in various environments. Note: Floating accessories required: Adapter base (item no. 38002) and fastening element (item no. 38001, 38004, 38005) Optional accessories: Extension tube (item no. 38003) Please order separately Includes bayonet catch with special toothing as vibration protection, maximum safety thanks to complete contact protection (even when replacing modules) Attention: Please note that light sources are not included in the scope of delivery. Please order bulbs / LEDs separately ! Please always order base element (item no. 38600) and fastening elements separately !
Our extremely reliable flashing light modules set new standards in terms of safety and warning effect. Equipped with an exceptionally high luminosity, they offer optimum visibility and attention. This is achieved through the use of super-bright LEDs that ensure a uniform 360-degree all-round beam. These modules offer various functions, including continuous light, single flashing mode, double flashing mode (xenon effect) and triple flashing mode. Even in the most demanding industrial environments, our flashing light modules maintain their maximum reliability. The secret lies in their robust construction and the materials from which they are made. The lamp lenses and housings are made of impact-resistant polycarbonate, which is self-extinguishing and therefore offers additional safety. In addition, our flashing light modules offer complete contact protection, which ensures maximum safety. Note: Mandatory accessories required: Adapter base (item no. 38002) and fastening element (item no. 38001, 38004, 38005) Optional accessories: Extension tube (item no. 38003)Please order separately. Attention: Please always order base element MSZ (item no. 38610) and fastening elements separately!
Our extremely reliable flashing light modules set new standards in terms of safety and warning effect. Equipped with an exceptionally high luminosity, they offer optimum visibility and attention. This is achieved through the use of super-bright LEDs that ensure a uniform 360-degree all-round beam. These modules offer various functions, including continuous light, single flashing mode, double flashing mode (xenon effect) and triple flashing mode. Even in the most demanding industrial environments, our flashing light modules maintain their maximum reliability. The secret lies in their robust construction and the materials from which they are made. The lamp lenses and housings are made of impact-resistant polycarbonate, which is self-extinguishing and therefore offers additional safety. In addition, our flashing light modules offer complete contact protection, which ensures maximum safety. Note: Mandatory accessories required: Adapter base (item no. 38002) and fastening element (item no. 38001, 38004, 38005) Optional accessories: Extension tube (item no. 38003)Please order separately. Attention: Please always order base element MSZ (item no. 38610) and fastening elements separately!
