Signalling accessories
The right accessories and spare parts for our industrial signalling. Light sources, lamps and mounting elements.
This base element is designed for the T system and forms the lowest element of a modular tower and is therefore essential if you intend to achieve effective signalling. Note: Includes 6-pole connection terminal for max. 2.5 qmm. Base element can be screwed directly to horizontal surfaces or combined with mounting accessories.

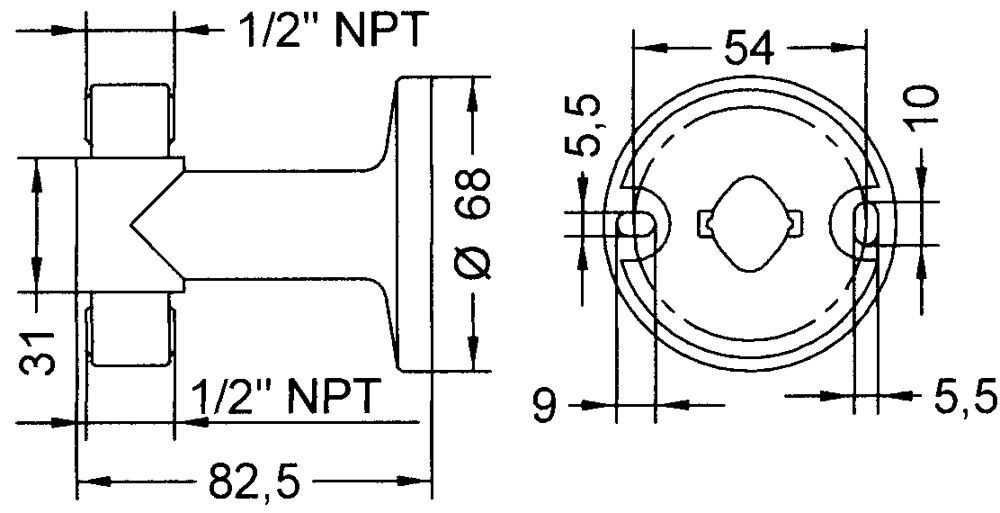

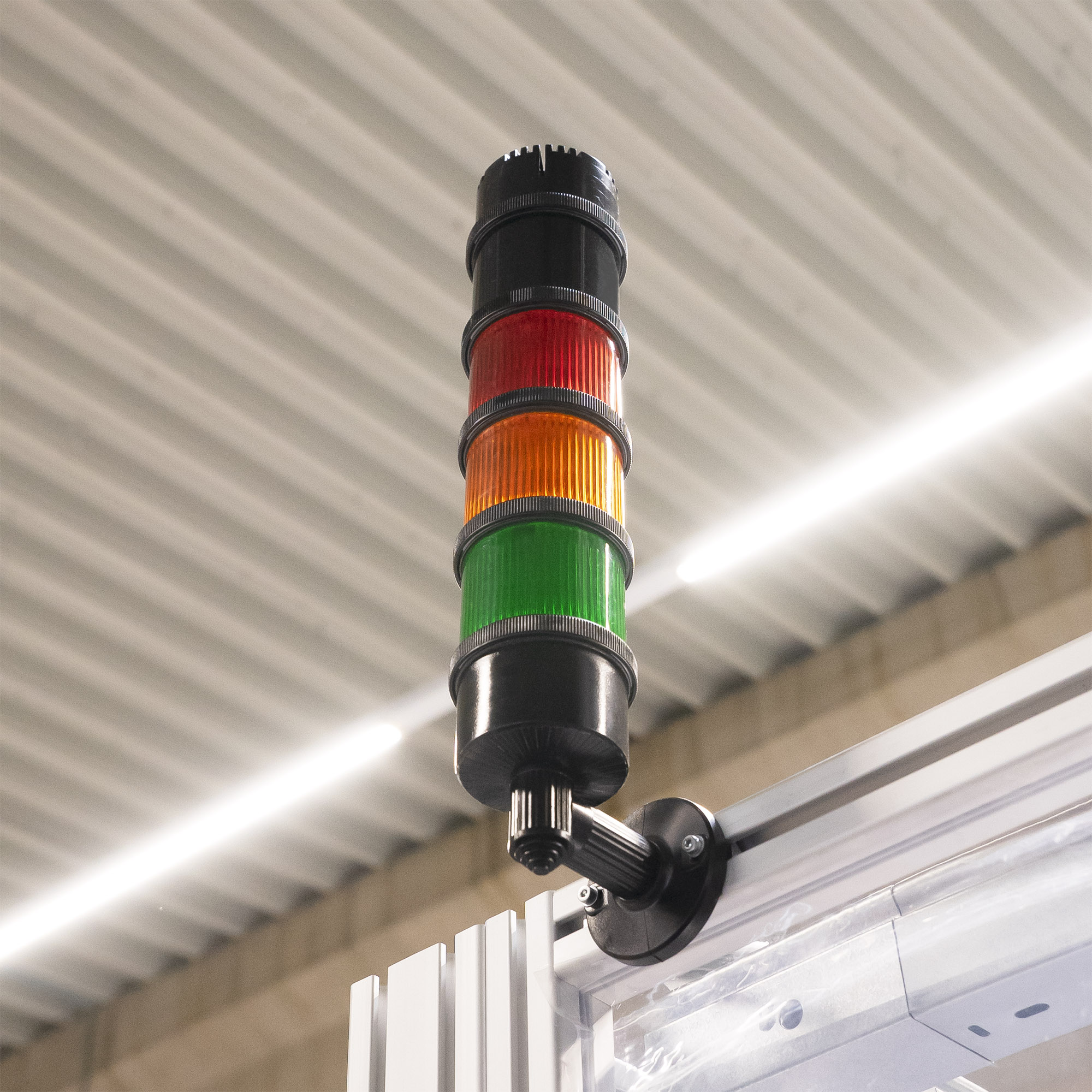

As the lowest element of a module tower, the base module provides a solid foundation for a flexible and customisable installation and thus forms the "base" for every module tower. Thanks to the base supplied, the base element can be easily screwed to horizontal surfaces or combined with the KSZxxx fastening accessory to offer different mounting options. The scope of delivery includes not only the base element and the base, but also all the necessary seals to ensure IP65 protection. With this base element, you not only get a robust base for your module tower, but also the security and flexibility required for your individual requirements. Note: As this product forms the basis of every modular tower, a base module must ALWAYS be ordered when creating a modular tower. The following KSZ mounting accessories are suitable for the item: Mounting bracket Wall mounting / vertical mounting, KSZ 8004, item no. 38004 Wall mounting / vertical mounting, KSZ 8604, item no. 38604 Wall mounting / vertical mounting, KSZ 8605, item no. 38605 Mounting plinth Horizontal mounting, KSZ 8001, item no. 38001 Horizontal mounting, KSZ 8601, item no. 38601 Extension KSZ 8003, item no. 38003 KSZ 8603, item no. 38603 Adapter base KSZ 8002, item no. 38002
The mounting bracket is used to mount small warning and flashing lights in a vertical position (wall mounting) and has two connections. The product is made of sturdy PA66 plastic and is supplied with a sealing ring that gives the base an IP65 protection rating. Note: Mandatory accessories: Adapter base (item no. 38002) Optional accessories: Extension tube (item no. 38003) Please order separately !
The mounting bracket is used to mount small warning and flashing lights in a vertical position (wall mounting) and has a single connection. The product is made of sturdy PA66 plastic and is supplied with a sealing ring that gives the base an IP65 protection rating.
Replacement bulb for warning lights and warning lights with Ba15d socket.
Replacement bulb for warning lights and warning lights with Ba15d socket.
Replacement bulb for warning lights with Ba15d socket. Matching rotating mirror lights: DSL 85xx, item no. 385xx
Bulb suitable for the Ba15d socket. The following products have the Ba15d socket: Matching combination horns: HORN WL 6311 24 V DC, item no. 31341 HORN WL 6301 240 V AC, item no. 31371 Matching warning lights (System T): TWL 8711 warning light, item no. 38711 TWL 8712 warning light, item no. 38712 TWL 8714 warning light, item no. 38714 TWL 8715 warning light, item no. 38715 TWL 8716 warning light, item no. 38716 TWL 8717 warning light, item no. 38717 Warning light TBL 8731, item no. 38731 Warning light TBL 8732, item no. 38732 Warning light TBL 8734, item no. 38734 Warning light TBL 8735, item no. 38735 Warning light TBL 8736, item no. 38736 Warning light TBL 8737, item no. 38737 Matching warning lights: Warning light KWL 8101, item no. 38101 Warning light KWL 8102, item no. 38102 Warning light KWL 8106, item no. 38106
Replacement bulb for warning lights with Ba15d socket. Matching rotating mirror lights: DSL 85xx, item no. 385xx
Replacement bulb for rotating mirror lights with Ba15d socket. Matching rotating mirror lights: DSL 7361, item no. 37361 DSL 7362, item no. 37362
Replacement bulb for rotating mirror lights with Ba15d socket. Matching rotating mirror lights: DSL 7332, item no. 37332 DSL 7337, item no. 37337
Replacement bulb for warning lights with Ba15d socket. Matching rotating mirror lights: DSL 85xx, item no. 385xx
This extension tube is made of sturdy PA 66 plastic and is screwed onto other fastening elements. The delivery includes a sealing ring. Note: To combine the light with the KSZ 8601/3/4/5 accessory, the KSZ 8602 adapter base is also required.
This halogen lamp with an H1 socket is used in rotating mirror lights. Suitable for: DSL 730x
This halogen lamp with an H1 socket is used in rotating mirror lights. Suitable for: DSL 730x

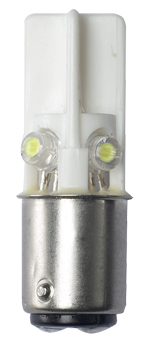

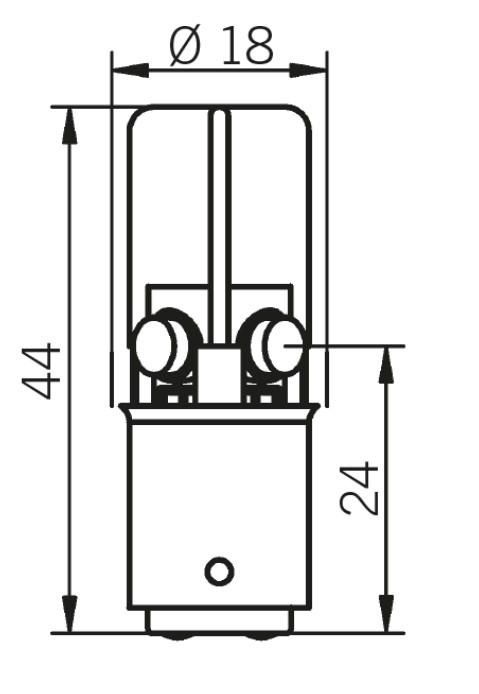

LED light source, red This LED light source impresses with its vibrant colours, high light intensity and standard Ba15d base. As a replacement for conventional bulbs with a Ba15d base, this LED light source can be used in many systems. It achieves an excellent warning effect thanks to its four extremely bright, maintenance-free LEDs, which offer a service life of at least 100,000 hours. It also fulfils the vibration safety standards in accordance with DIN 40046. The following products are compatible: Matching combination horns: HORN WL 6301 240 V AC, item no. 31371 Matching warning lights with socket: GWL 8511, item no. 38511 GWL 8212, item no. 38512 GWL 8516, item no. 38516 Warning light TBL 8731, item no. 38731 Warning light TBL 8732, item no. 38732 Warning light TBL 8734, item no. 38734 Warning light TBL 8735, item no. 38735 Warning light TBL 8736, item no. 38736 Warning light TBL 8737, item no. 38737 Matching warning lights: Warning light KWL 8101, item no. 38101 Warning light KWL 8102, item no. 38102 Warning light KWL 8106, item no. 38106 Matching rotating mirror lights:
LED light source, yellow This LED light source impresses with its vibrant colours, high light intensity and standard Ba15d base. As a replacement for conventional bulbs with a Ba15d base, this LED light source can be used in many systems. It achieves an excellent warning effect thanks to its four extremely bright, maintenance-free LEDs, which offer a service life of at least 100,000 hours. It also fulfils the vibration safety standards in accordance with DIN 40046. The following products are compatible: Matching combination horns: HORN WL 6301 240 V AC, item no. 31371 Matching warning lights with socket: GWL 8511, item no. 38511 GWL 8212, item no. 38512 GWL 8516, item no. 38516 Warning light TBL 8731, item no. 38731 Warning light TBL 8732, item no. 38732 Warning light TBL 8734, item no. 38734 Warning light TBL 8735, item no. 38735 Warning light TBL 8736, item no. 38736 Warning light TBL 8737, item no. 38737 Matching warning lights: Warning light KWL 8101, item no. 38101 Warning light KWL 8102, item no. 38102 Warning light KWL 8106, item no. 38106 Matching rotating mirror lights:
Our mounting elements offer versatile application options, as they can be attached to both horizontal and vertical surfaces. With a total of four fixing holes, it ensures a stable hold and reliable positioning. The mounting element is made of high-quality PA 66 plastic and has a base seal that not only provides additional protection, but also guarantees an IP65 protection rating.
Our mounting elements offer versatile application options, as they can be attached to both horizontal and vertical surfaces. With a total of four fixing holes, it ensures a stable hold and reliable positioning. The fastening element is made of high-quality PA 66 plastic and has a base seal that not only provides additional protection, but also guarantees an IP65 protection rating. Note: To combine the luminaire with the KSZ 8601/3/4/5 accessory, the KSZ 8602 adapter base is also required.
Our mounting elements offer versatile application options, as they can be attached to both horizontal and vertical surfaces. With a total of four fixing holes, it ensures a stable hold and reliable positioning. The fastening element is made of high-quality PA 66 plastic and has a base seal that not only provides additional protection, but also guarantees an IP65 protection rating. Note: To combine the luminaire with the KSZ 8601/3/4/5 accessory, the KSZ 8602 adapter base is also required.
The protective cage made of rustproof metal protects rotating mirror lights from rough external influences. Matching lights: DSL 7302, item no. 37302 DSL 7307, item no. 37307 DSL 7322, item no. 37322 DSL 7327, item no. 37327
This clip-on flange is used to adapt the rotating mirror or rotating flashing beacons to different installation environments. Depending on the accessory, horizontal, vertical or pipe mounting is possible. The product is made of sturdy plastic in the colour black. Matching lights: DSL 7302, item no. 37302 DSL 7307, item no. 37307 DSL 7322, item no. 37322 DSL 7327, item no. 37327

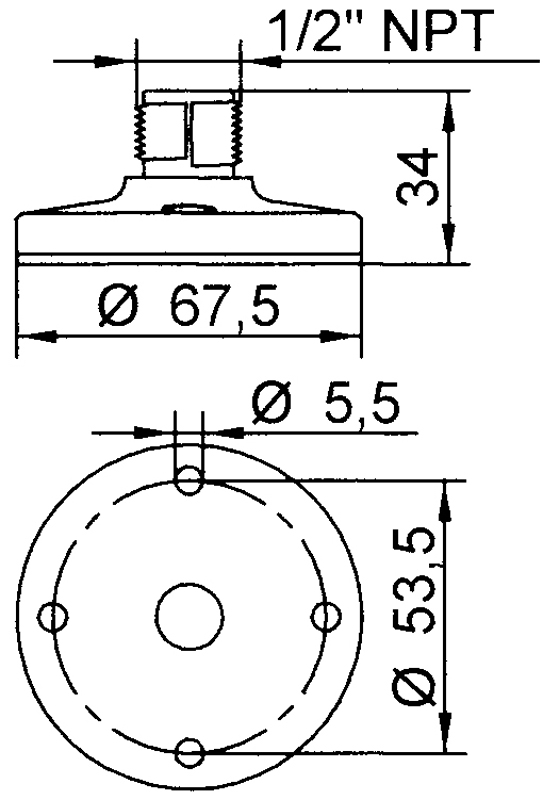

The mounting base is used to mount small warning and flashing lights in a horizontal position. The product is made of sturdy PA66 plastic and is supplied with a sealing ring that gives the base an IP65 protection rating. Note: Mandatory accessories: Adapter base (item no. 38002) Optional accessories: Extension tube (item no. 38003) Please order separately in each case!
The adapter base is used to mount small warning and flashing lights in a horizontal position and is screwed directly onto the light, which is necessary to enable it to be combined with the other accessories. The product is made of sturdy PA66 plastic and is supplied with a sealing ring that gives the base an IP65 protection rating. Note: Mandatory accessories: Mounting base (item no. 38001 or item no. 38004 or item no. 38005) Optional accessories: Extension tube (order no. 38003) Please order separately !
The extension tube is used to attach small warning and flashing lights. The product is made of sturdy PA66 plastic and is supplied with a sealing ring that gives the extension IP65 protection.

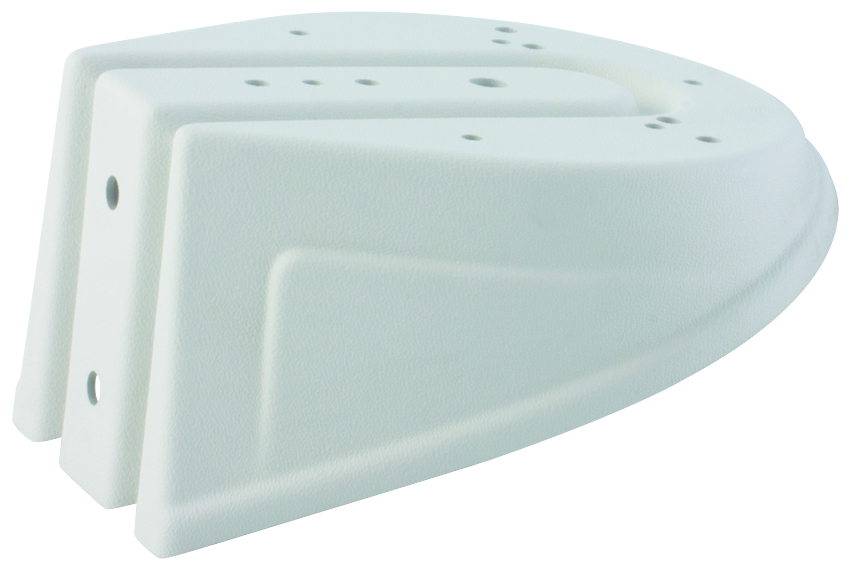

With the wall bracket made of sturdy grey plastic, certain lights can be mounted vertically on the wall. Suitable lights for this purpose: GWL 85xx GBZ 86xx HBZ 85xx DSL 73xx BLZ-R 73xx
Powerful xenon flashing light with good signalling effect for all GBZ lights that have a xenon flash tube installed. Fits with: GBZ xxxx
