Basic unit
Basic unit
- For System T
- Includes cover for closing off the top element
- Including plinth seal
- EPDM seal included
- 6-pole connection terminal included
- For horizontal or pipe mounting
- Housing made from impact-resistant polycarbonate
| Device type: | Holder / Housing |
|---|---|

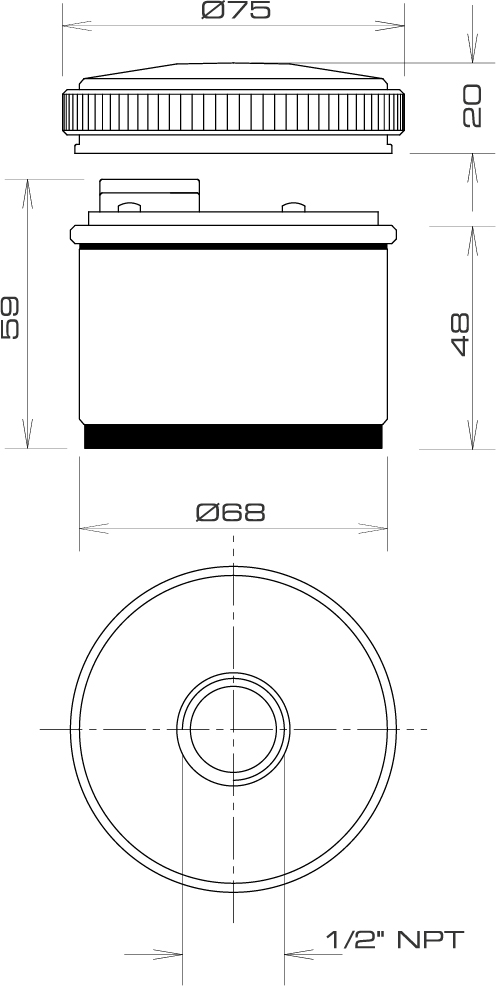

| Dimensions: | 75 x 75 x 68 mm |
| Connection terminals: | For max. 2.5 sqmm |
| Installation: | Can be combined with horizontal surfaces or mounting accessories |
| Material: | Polycarbonat |
| Protection class: | IP65 |
| Suitable for: | KSZ 860x, TLB 88xx, TWL 871x, TBL 87xx, TSG 87xx |
| Weight: | 0.12kg |
This base element is designed for the T system and forms the lowest element of a modular tower and is therefore essential if you intend to achieve effective signalling.
Note:
Includes 6-pole connection terminal for max. 2.5 qmm.
Base element can be screwed directly to horizontal surfaces or combined with mounting accessories.
| Manual |
|---|
| iba_tsz8600_38600_2016-05-03 |
Our mounting elements offer versatile application options, as they can be attached to both horizontal and vertical surfaces. With a total of four fixing holes, it ensures a stable hold and reliable positioning. The mounting element is made of high-quality PA 66 plastic and has a base seal that not only provides additional protection, but also guarantees an IP65 protection rating.
This extension tube is made of sturdy PA 66 plastic and is screwed onto other fastening elements. The delivery includes a sealing ring. Note: To combine the light with the KSZ 8601/3/4/5 accessory, the KSZ 8602 adapter base is also required.
Our mounting elements offer versatile application options, as they can be attached to both horizontal and vertical surfaces. With a total of four fixing holes, it ensures a stable hold and reliable positioning. The fastening element is made of high-quality PA 66 plastic and has a base seal that not only provides additional protection, but also guarantees an IP65 protection rating. Note: To combine the luminaire with the KSZ 8601/3/4/5 accessory, the KSZ 8602 adapter base is also required.
Our mounting elements offer versatile application options, as they can be attached to both horizontal and vertical surfaces. With a total of four fixing holes, it ensures a stable hold and reliable positioning. The fastening element is made of high-quality PA 66 plastic and has a base seal that not only provides additional protection, but also guarantees an IP65 protection rating. Note: To combine the luminaire with the KSZ 8601/3/4/5 accessory, the KSZ 8602 adapter base is also required.
Our low-cost warning light module is the ideal solution for standard applications where a reliable warning effect and uniform all-round radiation (360°) are required. This versatile module has been developed to accommodate both incandescent and LED lamps in the 12 to 240 V (5 W) range. The robust construction with lamp lenses and housing made of impact-resistant, self-extinguishing polycarbonate ensures high durability and resistance. The warning light module has an IP65 protection rating and belongs to protection class II, which offers additional safety and reliability in various environments. Note: Includes bayonet catch with special toothing as vibration protection, maximum safety thanks to complete contact protection (even when replacing modules) Attention: Please note that bulbs are not included in the scope of delivery. Please order bulbs / LEDs separately ! Please always order base element (order no. 38600) and fastening elements separately !
Inexpensive flashing light module for standard applicationsProduct features:Good warning effect and uniform all-round radiation (360 °) Prepared for 12 to 48 V incandescent lamps and LED lamps (5 W) Lamp lenses and housing made of impact-resistant polycarbonate PC (self-extinguishing), circuit board FR4 Color: BlueTechnical data:Socket: Ba15d Duty cycle: ED 100 % Protection class: IP65, protection class II Temperature range: -30 °C to +60 °C Dimensions: 75 (D) x 79 mm Weight: 90 gPower supply: 12 V - 48 V (DC), (0.43 A - 0.21 A) Luminous intensity: 1 Cd(p)Installation note:Includes bayonet catch with special toothing as vibration protection, maximum safety thanks to complete contact protection (even when replacing modules).Note:Please order bulbs separately!Attention: Please always order base element (order no. 38600) and fastening elements separately!
Inexpensive flashing light module for standard applicationsProduct features:Good warning effect and uniform all-round radiation (360 °) Prepared for incandescent lamps and LED lamps 24 to 240 V (5 W) Lamp lenses and housing made of impact-resistant polycarbonate PC (self-extinguishing), circuit board FR4Color: GreenTechnical data:Socket: Ba15d Duty cycle: ED 100 % Protection class: IP65, protection class II Temperature range: -30 °C to +60 °C Dimensions: 75 (D) x 79 mm Weight: 90 gPower supply: 24 V - 240 V (AC), (0.21 A - 0.021 A) Luminous intensity: 1 Cd(p)Installation note:Includes bayonet catch with special toothing as vibration protection, maximum safety thanks to complete contact protection (also when replacing modules)Note:Please order bulbs separately!Attention: Please always order base element (order no. 38600) and fastening elements separately!
Our extremely reliable flashing light modules set new standards in terms of safety and warning effect. Equipped with an exceptionally high luminosity, they offer optimum visibility and attention. This is achieved through the use of super-bright LEDs that ensure a uniform 360-degree all-round beam. These modules offer various functions, including continuous light, single flashing mode, double flashing mode (xenon effect) and triple flashing mode. Even in the most demanding industrial environments, our flashing light modules maintain their maximum reliability. The secret lies in their robust construction and the materials from which they are made. The lamp lenses and housings are made of impact-resistant polycarbonate, which is self-extinguishing and therefore offers additional safety. In addition, our flashing light modules offer complete contact protection, which ensures maximum safety. Note: Including bayonet catch with special toothing as vibration protection Attention: Please always order base element TSZ 8600, item no. 38600 and fastening elements separately!
Our extremely reliable flashing light modules set new standards in terms of safety and warning effect. Equipped with an exceptionally high luminosity, they offer optimum visibility and attention. This is achieved through the use of super-bright LEDs that ensure a uniform 360-degree all-round beam. These modules offer various functions, including continuous light, single flashing mode, double flashing mode (xenon effect) and triple flashing mode. Even in the most demanding industrial environments, our flashing light modules maintain their maximum reliability. The secret lies in their robust construction and the materials from which they are made. The lamp lenses and housings are made of impact-resistant polycarbonate, which is self-extinguishing and therefore offers additional safety. In addition, our flashing light modules offer complete contact protection, which ensures maximum safety. Note: Including bayonet catch with special toothing as vibration protection Attention: Please always order base element TSZ 8600, item no. 38600 and fastening elements separately!
