Funksender Aufputz/Unterputz Weiß Blende quadratisch MISTRAL SE07 Q AP/UP WS
Funksender Aufputz/Unterputz Weiß Blende quadratisch MISTRAL SE07 Q AP/UP WS
- Compatible with all wireless doorbells in the MISTRAL, ECHO and CALIMA series
- Colour plastic: black
- LED function control
- Frequency: 868.35 MHz (fulfils the current RED 2014/53/EU radio standard)
- Range: 200 m in free field
- Power supply: 3 V lithium battery / integrated
- Operating temperature: -15 °C to 50 °C
- Suitable for indoor and outdoor use
- Protection class IP67
Parts you can order additionally
| Device type: | Wireless doorbell button |
|---|---|

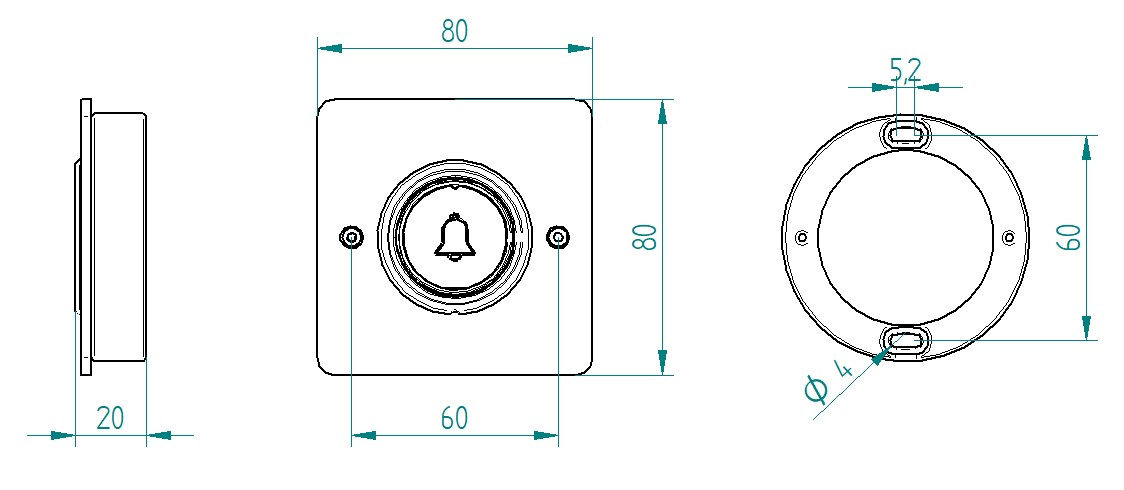

| Dimensions: | 80x80x21mm |
| Series: | Mistral |
| Color: | White |
| Form: | Rectangular |
| Frequency: | 868.35MHz |
| Installation: | Auf- / Unterputz |
| Material: | plastic |
| Power supply: | 3 Volt lithium battery / integrated, Batteriebetrieb |
| Protection class: | IP67 |
| Range: | 200 metres |
| Temperature range: | -15 °C to 50 °C |
| Transmission power: | 25 mW |
| Usage: | Innen- / Außenbereich |
The installation can be carried out as required as a surface-mounted or flush-mounted installation on a flush-mounted box. The adapter ring is removed for flush-mounted installation.
The white, square Plexiglas design plate enables customised installation and blends seamlessly into any environment.
| Manual |
|---|
| Installations-und-Bedienungsanleitung_Mistral-SE07_MV434460_2024-11-08 |
| CE-Declaration |
|---|
| CE_Konform_MISTRAL_SE07_2024-04-09 |
| Additional Information |
|---|
| Herstellergarantie_Grothe |
| Manufacturer-warranty_Grothe |
