Wireless transmitter in nameplate housing
Wireless transmitter in nameplate housing
• Wireless transmitter in nameplate housing
• Compatible with all wireless chimes of the MISTRAL, ECHO, CALIMA, and Polo series
• Operating voltage: 3 volts, battery-powered, without white LED illumination
• Frequency: 868.35 MHz
• Wireless range: 200 m (open field)
• For a potential-free contact (wire length: 40 mm)
• Color: Transparent
• Red LED status indicator
• Dimensions: 23 x 70 x 14 mm
| Device type: | Wireless doorbell button |
|---|---|
| Dimensions: | 23 x 70 x 14 mm |
| Series: | MISTRAL |
| Color: | Transparent |
| Frequency: | 868.35MHz |
| Installation: | Für den Ausschnitt |
| Installation depth: | 10,5 mm |
| LED light: | Ohne |
| Power supply: | Batteriebetrieb, Batteriebetrieben (3 V) 2 x 1,5 V AAA Batterien (nicht im Lieferumfang) |
| Range: | 200 metres |
| Temperature range: | -15 °C to 50 °C |
| Transmission power: | 25 mW |
Funksender im Namensschild-Gehäuse MISTRAL SE11 Batt – Innovative Lösung für kabellose Türkommunikation
Der Funksender im Namensschild-Gehäuse MISTRAL SE11 Batt ist ein hochmoderner Funkklingeltaster mit einzigartigen Vorzügen: Er ist batteriebetrieben, montagefreundlich und ermöglicht die Erweiterung Ihrer Klingelanlage – ganz ohne aufwendige Leitungsverlegung. Dieser Funktaster überzeugt durch ein schlankes, transparentes Design und seine robuste Verarbeitung. Ideal für den Einsatz in Klingel- und Etagenplatten, Briefkastenanlagen sowie individuellen Lösungen an Haustüren und Eingangssystemen.
Einfache Integration und universelle Kompatibilität
Der MISTRAL SE11 Batt ist Teil der bewährten Grothe MISTRAL Serie und mit dem innovativen Grothe AirLink-System ausgestattet. Damit ist der Funksender vollständig kompatibel zu allen Grothe-Funkgongs der Serien MISTRAL, ECO, CALIMA und POLO. Mit einer
Funkreichweite von bis zu 200 Metern (im Freifeld) lassen sich auch mittlere bis größere Entfernungen problemlos kabellos überbrücken – perfekt für Einfamilienhäuser, Mehrfamilienhäuser, Gewerbeobjekte sowie Büro-, Praxis- und Ladenflächen.
Hauptmerkmale des Funkklingeltasters MISTRAL SE11 Batt
- 1-fach Funkklingeltaster – konzipiert für den Einbau in Klingel-, Etagenplatten, Briefkastenanlagen und mehr
- Funkreichweite von 200 Metern – auch für anspruchsvollere Grundstückslagen geeignet
- Batteriebetrieben – benötigt 2 x 1,5 V AAA Batterien (nicht im Lieferumfang enthalten), absolut flexibel einsetzbar
- Kompatibel zu allen Grothe-Funkgongs der Serien MISTRAL, ECO, CALIMA und POLO

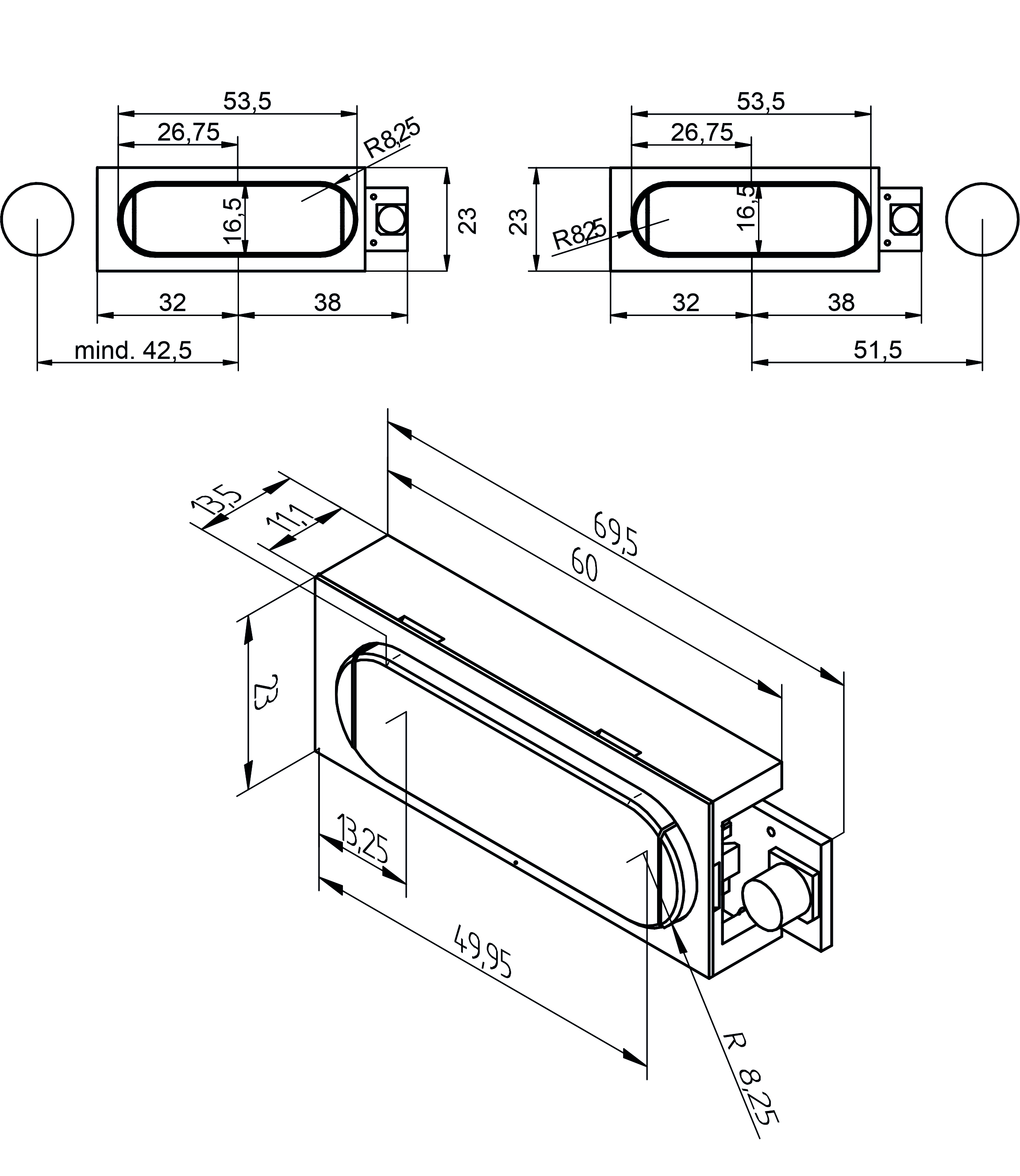

- Montagefreundlich – geringer Platzbedarf, Einbautiefe nur 10,5 mm, Maße: 23 x 70 x 14 mm
- LED-Statusanzeige (rot) zur Bestätigung des Sendesignals
- Transparentes Gehäuse mit integriertem Namensschild – modern, dezent und anpassungsfähig
- Frequenz: 868,35 MHz – äußerst störungssicher, auch in funkintensiven Umgebungen
- Großer Temperaturbereich: -15 °C bis 50 °C – auch für Außenbereiche bestens geeignet
- Für Plattenstärken von 2 mm bis 2,5 mm optimiert
- Inklusive Batteriehalter für sichere und komfortable Stromversorgung
Für wen ist der MISTRAL SE11 Batt Funktaster besonders geeignet?
Der Funkklingeltaster MISTRAL SE11 Batt ist die perfekte Lösung für alle, die eine zuverlässige Klingel-Funktion unabhängig vom Leitungsnetz wünschen. Er eignet sich insbesondere für:
- Hauseigentümer, die für eine individuelle Klingelplatte einen Funk-Klingeltaster mit Namensschild zum Einbau suchen
- Gewerbebetriebe und Praxisräume, die für individuelle Briefkastenanlagen, Türstationen oder Etagenplatten Funk-Klingeltaster benötigen
- Briefkasten- und Etagenanlagen in Mehrfamilienhäusern
- Für Anwender, die in ihrer Anlage einen defekten Einbau-Klingeltaster austauschen möchten
Modernste Funktechnik für sicheren, störungsfreien Betrieb
Im Gegensatz zu herkömmlichen Klingeltastern setzt der MISTRAL SE11 Batt auf die bewährte 868,35 MHz Funkfrequenz. Sie gewährleistet zuverlässige Schaltvorgänge selbst in dicht bewohnten oder funkintensiven Umgebungen. Die Reichweite von 200 Metern im Freifeld garantiert, dass Sie auch in weitläufigeren Bereichen stets auf Ihr Klingelsignal vertrauen können.
Die rote LED-Statusanzeige informiert Sie über die erfolgreiche Signalübertragung – eine besonders nutzerfreundliche Funktion, die sich gerade im Alltag als praktisch erweist.
Einfache Montage und hohe Betriebssicherheit
Für die Befestigung des Funkklingeltasters eignet sich jede metallfreie Oberfläche mit einer Stärke von 2 mm bis 2,5 mm. Die Integration in Klingel- oder Briefkastenplatten ist ebenso unkompliziert wie der Austausch gegen bestehende Taster. Reinigen Sie die Montagefläche, platzieren Sie das Gerät und fixieren Sie es sicher – ohne Bohren oder Schrauben. Die Batterien (2 x 1,5 V AAA) lassen sich über den mitgelieferten Batteriehalter einfach wechseln.
Praktische Details wie das potenzialfreie Schaltkontakt-Design erlauben vielseitige Anschlussmöglichkeiten und fördern Kompatibilität in nahezu jeder Signal- oder Gegensprechanlage.
| Manual |
|---|
| Installationsanleitung_MISTRAL-SE11_Rev2_MV043911_2025-04-22 |
| CE-Declaration |
|---|
| CE_Konform_MISTRAL_SE11_2024-11-12 |
| Additional Information |
|---|
| Herstellergarantie_Grothe |
| Manufacturer-warranty_Grothe |
Mistral 300M E 500 metre range (free field) The interference-free radio connection up to 500 metres guarantees a reliable doorbell. 13 polyphonic melodies With the large selection of appealing ringtones, you can customise your Mistral 200 flexibly. Multiple call differentiation for several doors With the help of call differentiation, you can immediately recognise whether the front door or the garden gate has rung. Up to 16 wireless bell buttons can be programmed and 16 can be assigned an individual ring tone. Call types: Central call: An incoming call is forwarded to several doorbells simultaneously and triggers them. Individual call: Several transmitters are linked to a single doorbell. Matrix call: A transmitter triggers targeted or selective communication with specific doorbells. Power supply: The Mistral 300M E can be powered either by four LR14/C batteries or by a wired power supply of 8 - 12 V AC / DC. Low battery indicator The wireless doorbell gives a visual and acoustic signal when the batteries in the bell button and doorbell are almost empty. This means you won't miss any visitors because the battery is unexpectedly empty. Note: *Walls, doors, metal parts etc. can noticeably reduce the range!
Radio door opener relay - MISTRAL FTR The MISTRAL FTR enables the control of an existing door opener; by using a MISTRAL wireless bell button, the MISTRAL FTR can be controlled wirelessly from any distance. With its compact size, the MISTRAL FTR can be easily integrated into flush-mounted boxes and junction boxes. The switching time can be set individually between 0.5 and 30 seconds. It is possible to connect up to 15 radio transmitters. The device complies with the current radio standards in accordance with RED 2014/53/EU and is ideal for retrofitting
Mistral 600E 500 metre range (free field) The interference-free radio connection up to 500 metres guarantees a reliable doorbell. 16 polyphonic melodies With the large selection of appealing ringtones, you can customise your Mistral 600E flexibly. Multiple call differentiation for several doors With the help of call differentiation, you can immediately recognise whether the front door or the garden gate has rung. Up to 20 wireless bell buttons can be programmed and 16 can be assigned an individual ring tone. Call types: Central call: An incoming call is forwarded to several doorbells simultaneously and triggers them. Individual call: Several transmitters are linked to a single doorbell. Matrix call: A transmitter triggers targeted or selective communication with specific doorbells. Power supply: The Mistral 600E can be powered either by four LR14/C batteries or by a wired power supply of 8 - 12 V AC / DC. Low battery indicator The wireless doorbell gives a visual and acoustic signal when the batteries in the bell button and doorbell are almost empty. This means you won't miss any visitors because the battery is unexpectedly empty. Note: *Walls, doors, metal parts etc. can noticeably reduce the range!
Radio transmitter MISTRAL SE 06 The wireless transmitter connects a conventional bell button with a Grothe wireless doorbell. This allows classically wired doorbell systems to be modernised to a wireless doorbell system without having to change the bell button on the front door. Note: Battery CR 2450, item no. 43397

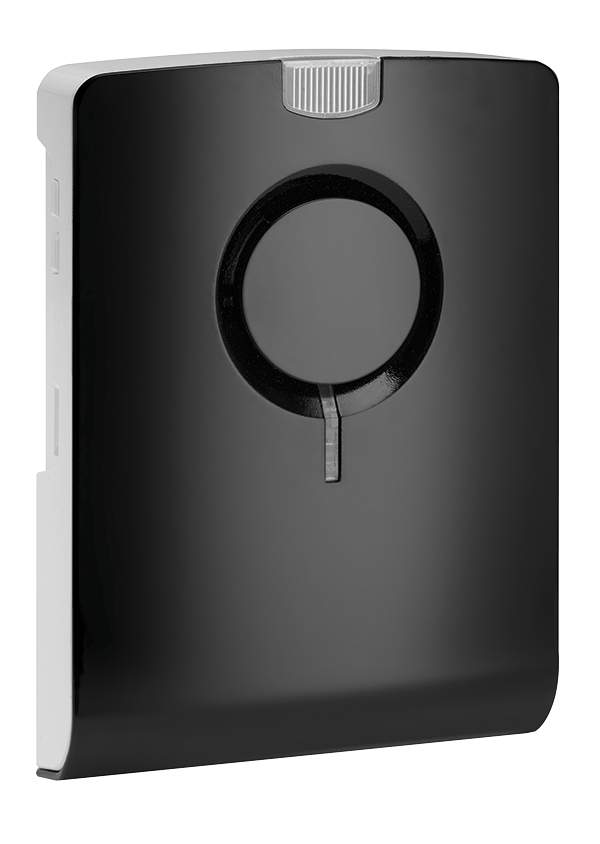

Mistral 350E SW 500 metre range (free field) The interference-free radio connection up to 500 metres guarantees a reliable doorbell. 11 polyphonic melodies With the large selection of appealing ringtones, you can customise your Mistral 350E SW flexibly. Multiple call differentiation for several doors With the help of call differentiation, you can immediately recognise whether the front door or the garden gate has rung. Up to 11 wireless bell buttons can be programmed and 11 can be assigned an individual call tone. Call types: Central call: An incoming call is forwarded to several doorbells simultaneously and triggers them. Individual call: Several transmitters are linked to a single doorbell. Matrix call: A transmitter triggers targeted or selective communication with specific doorbells. Practical muting The MISTRAL 350E SW can be muted for 1, 3, 9 hours or indefinitely for an undisturbed night's sleep. Power supply: The Mistral 350E SW is powered by 4x 1.5 V LR14/C batteries. (not included in the scope of delivery) Low battery indicator The wireless doorbell gives a visual and acoustic signal when the batteries in the bell button and doorbell are almost empty. This means you won't miss any visitors because the battery is unexpectedly empty. Note: *Walls, doors, metal parts etc. can noticeably reduce the range!

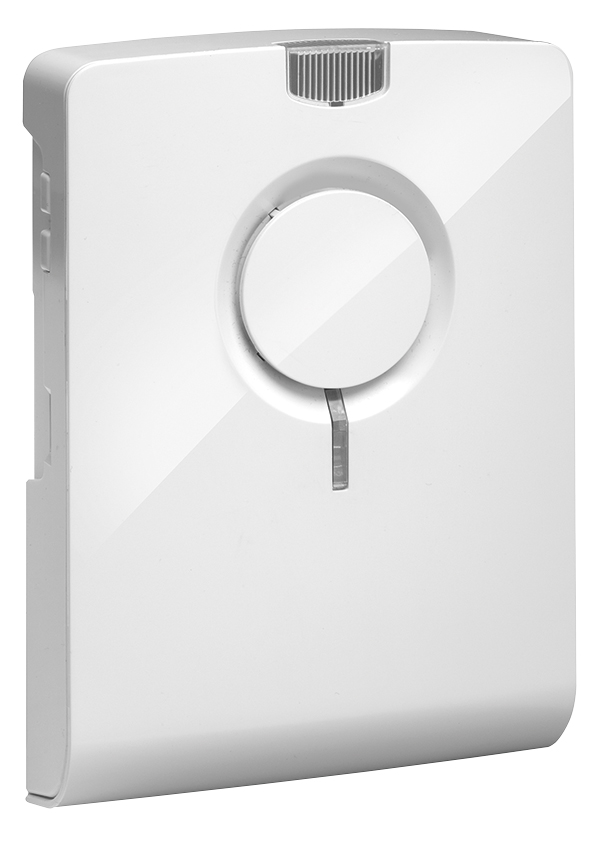

Mistral 350E WS 500 metre range (free field) The interference-free radio connection up to 500 metres guarantees a reliable doorbell. 11 polyphonic melodies With the large selection of appealing ringtones, you can customise your Mistral 350E WS flexibly. Multiple call differentiation for several doors With the help of call differentiation, you can immediately recognise whether the front door or the garden gate has rung. Up to 12 wireless bell buttons can be programmed and 11 can be assigned an individual ring tone. Call types: Central call: An incoming call is forwarded to several doorbells simultaneously and triggers them. Individual call: Several transmitters are linked to a single doorbell. Matrix call: A transmitter triggers targeted or selective communication with specific doorbells. Practical muting The MISTRAL 350E WS can be muted for 1, 3, 9 hours or indefinitely for an undisturbed night's sleep. Power supply: The Mistral 350E WS is powered by 4x 1.5 V LR14/C batteries. (not included in the scope of delivery) Low battery indicator The wireless doorbell gives a visual and acoustic signal when the batteries in the bell button and doorbell are almost empty. This means you won't miss any visitors because the battery is unexpectedly empty. Note: *Walls, doors, metal parts etc. can noticeably reduce the range!
Wireless doorbell CALIMA 200E CALIMA wireless doorbell series The CALIMA 200 is a portable, modern wireless doorbell that blends into any home thanks to its high-quality design. Many practical functions, such as menu settings via two push-buttons, adjustable volume and light colour selection make it an ideal everyday helper. Enjoy the flexibility and never miss an important parcel or a spontaneous visit for coffee again! Thanks to its long range and compliance with the latest wireless standard, the CALIMA 200 can even be taken into the garden. Flexibility Interference-free wireless connection with a range of up to 500 metres. Menu with voice prompt Simple management thanks to clear menu structure, voice output and two discreet push-buttons Multiple call differentiation Signals directly which door has rung Coloured LED ring Also visually informs you that visitors are at the front door. The colour and type of light can be selected as desired. Mute and snooze function When you want peace and quiet in the house With this practical function, you can conveniently mute or snooze the doorbell. Note: Potential radio interference can be ruled out with our wireless doorbells as they have been certified in accordance with the RED Directive 2014/53/EU.
Wireless doorbell CALIMA 600E The CALIMA wireless doorbell series was developed to meet the individual requirements of modern everyday life. Many practical functions, such as menu control via two push-buttons, adjustable volume and individual colour settings can be adapted to your needs. However, the highlight of the CALIMA 600 is its shape and the resulting flexibility of location. As a wireless doorbell, the CALIMA 600 is portable and can be taken anywhere. Thanks to its enormous range and high radio standard, you can move freely around the house and even into the garden with the doorbell. So you'll never miss a parcel carrier or visitor again! The device is equipped with a flashing light so that even hearing-impaired people can ring the bell. You also have the option of playing your own melodies on the wireless doorbell using a microSD card. To save batteries, the CALIMA 600 can be operated using an optional table adapter. Flexibility Interference-free wireless connection with a range of up to 500 metres. Menu with voice prompt Simple management thanks to clear menu structure, voice output and two discreet push-buttons Multiple call differentiation Signals directly which door has rung Coloured LED ring Also visually informs you that visitors are at the front door. The colour and type of light can be selected as desired. Mute and snooze function When you want peace and quiet in the house This practical function allows you to conveniently mute or snooze the doorbell. Note: Potential radio interference can be ruled out with our wireless doorbells, as they have been certified in accordance with the RED Directive 2014/53/EU.

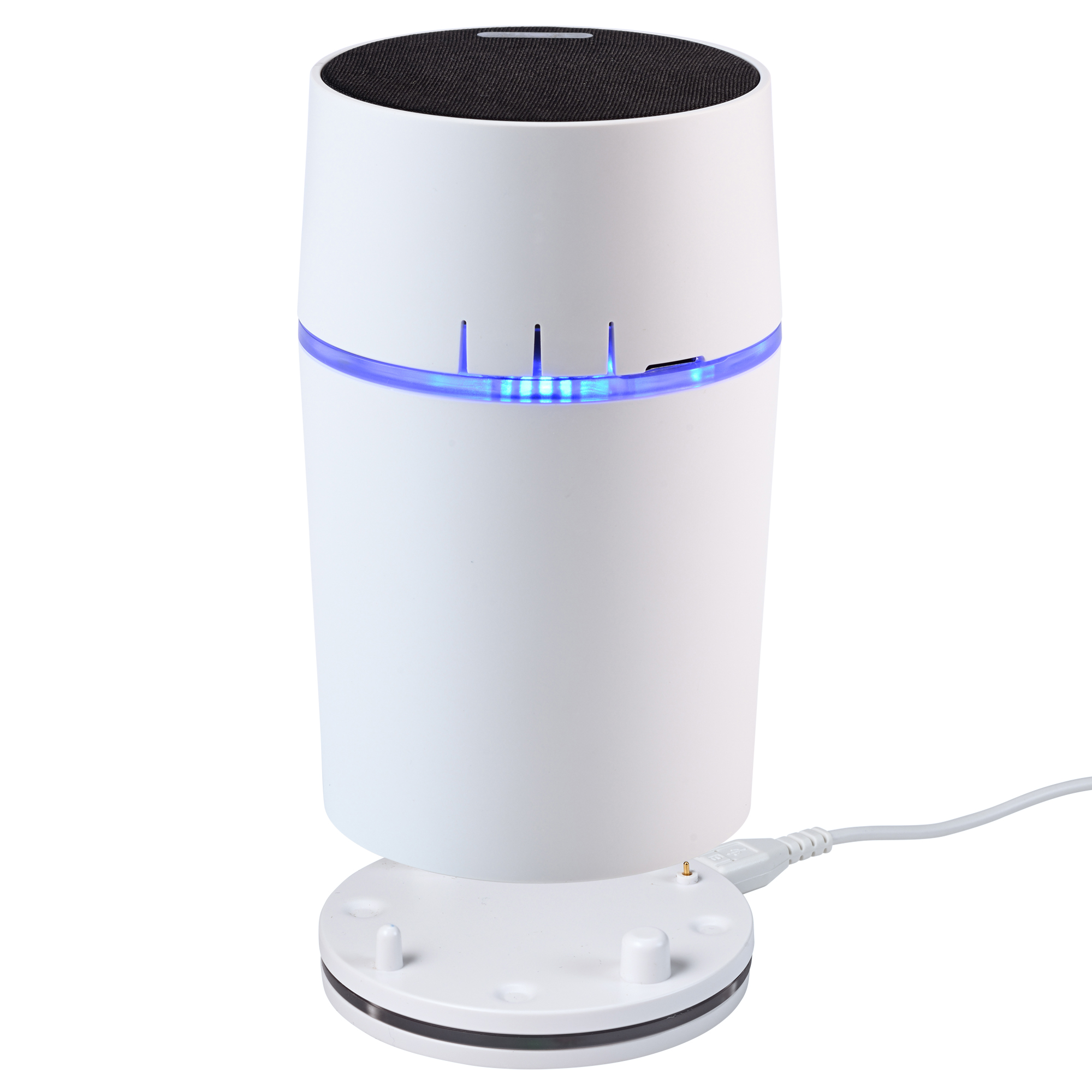

CALIMA 800 Bluetooth wireless doorbell CALIMA is the doorbell series developed for the individual requirements of modern everyday life. With practical functions, the doorbells in the CALIMA series adapt to your needs. Thanks to its simple and practical design, the CALIMA 800 fits into any home and impresses with its many functions. The special thing about the CALIMA 800 is that it is portable and can be connected to your mobile phone via Bluetooth! With the Bluetooth function, you can place the CALIMA 800 anywhere in the house as a portable jukebox. The device has a flashing light that visually indicates when it has rung. You also have the option of playing your own melodies on the wireless doorbell using a microSD. The CALIMA 800 also comes with a table adapter (TA55) which serves as a charging station for the wireless doorbell. Flexibility Interference-free wireless connection with a range of up to 500 metres. Menu with voice prompt Simple management thanks to clear menu structure, voice output and two discreet push-buttons Multiple call differentiation Signals directly which door has rung Coloured LED ring Also visually informs you that visitors are at the front door. The colour and type of light can be selected as desired. Mute and snooze function When you want peace and quiet in the house This practical function allows you to conveniently mute or snooze the doorbell. Note: Potential radio interference can be ruled out with our wireless doorbells, as they have been certified in accordance with the RED Directive 2014/53/EU.
