Wireless chime kit ECHO white
Wireless chime kit ECHO white
- MISTRAL SE03 included
- Nine pre-installed melodies
- Customised melodies can be recorded (SD card)
- 20-fold call differentiation
- 20 transmitters can be programmed
- Range: 500 m
- Plug & play
- Battery operation / external power supply
| Device type: | Wireless gong set |
|---|---|
| Series: | ECHO M |
| Call distinction: | 20x |
| Call types: | Central, individual, matrix call |
| Color: | White |
| Flashlight: | LED |
| Frequency: | 868.35MHz |
| Number of melodies: | 9 Melodien |
| Number of pairable transmitters: | 20 |
| Power supply: | Batteries |
| Radio range: | 500 m in open field |

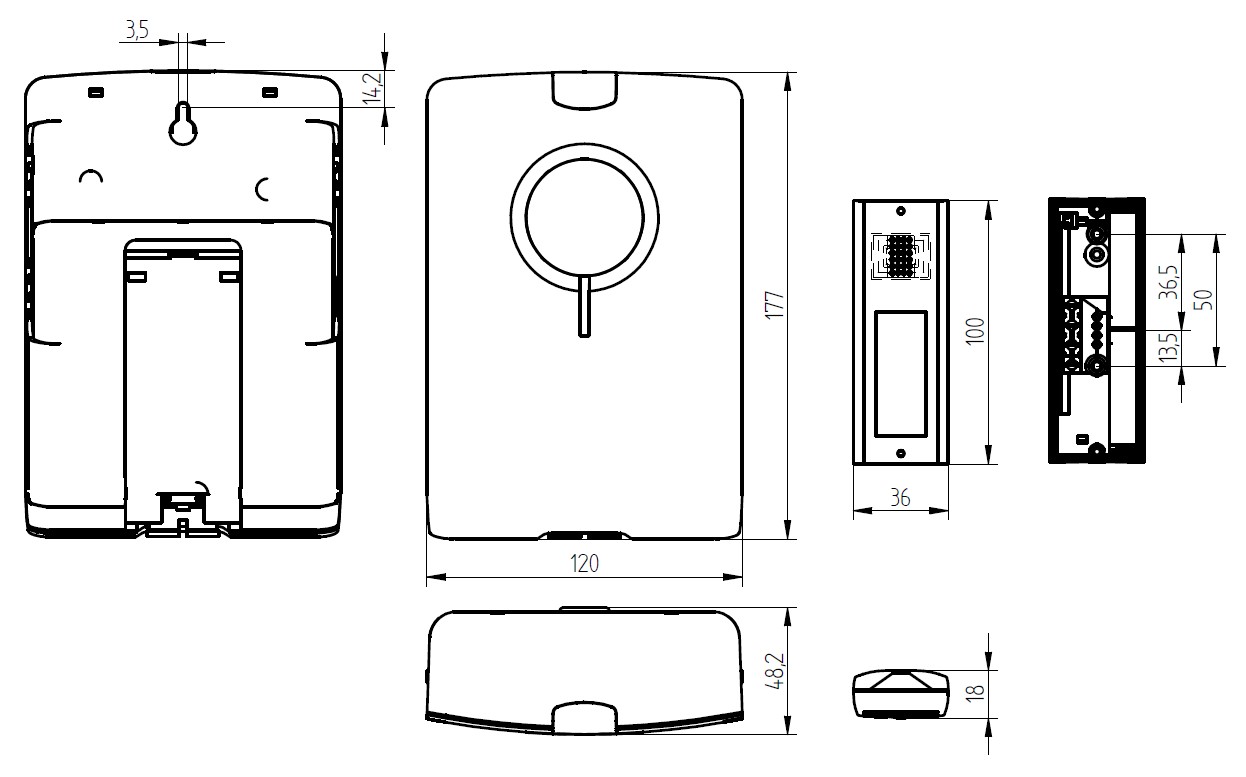

| Receiver dimensions: | 180x120x50mm |
| Receiver power supply: | 4 x 1,5 V Batterien Typ LR14/C (nicht im Lieferumfang), extern: 8 – 12 V AC / DC |
| Software: | For ringtone generation |
| Surface: | gloss |
| Total ringtone duration: | 90 s brilliant sound |
| Transmission ringtones: | Micro SD card (not included) |
| Transmitter dimensions: | 36x100x17mm |
| Transmitter power supply: | 2 x 1,5 V Batterien Typ AAA (nicht im Lieferumfang), extern: 6 – 12 V DC |
| Transmitter protection class: | IP54 |
| Volume: | Max. 86 dB(A) adjustable |
ECHO M, white, in a set with wireless bell button SE03 - factory-programmed and ready to use
. Your favourite song as a ringtone
Any melody can be used as a ringtone via a MicroSD card. ECHO already has 9 appealing melodies as standard.
500 metre range (free field)
The interference-free radio connection up to 500 metres guarantees a reliable doorbell.
Brilliant sound
ECHO plays your customised melody in loudspeaker quality.
Optical LED signal
Activate the bright LED flash light as visual signalling in addition to the ring tone.
Multiple call differentiation for several doors
With the help of call differentiation, you can immediately recognise whether the front door or the garden gate has rung. Up to 20 wireless bell buttons can be programmed and assigned an individual ring tone.
Call types:
Central call: An incoming call is forwarded to several doorbells simultaneously and triggers them.
Individual call: Several transmitters are linked to a single doorbell.
Matrix call: A transmitter triggers targeted or selective communication with specific doorbells.
Low battery indicator
The wireless doorbell gives a visual and acoustic signal when the batteries in the bell button and doorbell are almost empty. This means you won't miss any visitors because the battery has unexpectedly run out.
Flexible mounting
ECHO has a fold-out stand that allows the doorbell to be placed anywhere. With an additional wall bracket (not included in the set), ECHO can also be mounted on the wall.
Note:
Walls, doors, metal parts etc. can significantly reduce the range!
To increase the range, please use the MISTRAL WR repeater.
Do not clean the high-gloss surface with a microfibre cloth.
Do not use cleaning agents.
Please only wipe with a damp cloth.
Radio transmitter MISTRAL SE 03, white The transmitter can be coupled with all wireless doorbells in the MISTRAL, ECHO, CALIMA and Polo series and is therefore essential for many GROTHE products. With a quartz-stable range of 500 metres and a frequency range of 868 MHz, the SE 03 wireless bell button provides you with a reliable radio signal even over long distances. The radio transmitter also allows you to create a variety of flexible transmitter/receiver combinations. The transmitter can be mounted on the wall or hung using a clip. The waterproof transmitter is equipped with a nameplate that can be labelled and an LED transmission control. Call forwarding is also possible. The typical battery life for the transmitter is 5-10 years. Note: *Walls, doors, metal parts etc. can noticeably reduce the range. The transmitter is suitable for all MISTRAL doorbells manufactured from 2003 onwards.
The radio transmitter MISTRAL SE07 B AP WS was specifically developed for surface mounting and is particularly suitable for demanding applications on small mounting surfaces. With its compact design and reliable functionality, it offers a practical solution for various areas of application. Thanks to its easy installation, it is ideal for situations where quick and uncomplicated installation is required. Optically, the transmitter blends seamlessly into any environment thanks to its white colour.
Wall bracket for ECHO M and ECHO 120 The doorbell can be supplied with power via this wall bracket and conventional bell buttons can be connected.
