Electronic siren
Electronic siren
- Requires 12 - 24 V AC / DC (215 - 250 mA)
- Volume: 80 - 100 dB(A)
- Two functions
- Twelve tones adjustable with dip switch and one fixed alarm tone
- Surface mounting on horizontal surfaces
- Sturdy plastic
- Colour: white
- Designed for continuous operation
| Device type: | siren |
|---|---|
| Dimensions: | 92 (D) x 102 mm |
| Max. volume: | 100 dB(A) |
| Alarm: | Fest vorgegebener Ton |
| Color: | White |
| Duty cycle: | Continuous operation |
| Functions: | warning, alarm |
| Installation: | Surface-mounted |
| Material / color: | Plastic / White |
| Operating temperature: | -30 °C bis 50 °C |
| Power supply: | 12 - 24 V AC/DC, 12 – 24 V AC / DC (215 – 250 mA) |
| Protection class: | IP65 |
| Warning: | 12 tones adjustable with dip switch |
The electronic siren is suitable for the System M; a compact and modular system. The sounder is factory-fitted in combination with a System M base module and has an extremely high volume. The two functions, warning and alarm, can be switched independently using separate contacts. The alarm has a fixed tone, while there are 12 different tones for the warnings, which can be selected using a DIP switch.
Note:
The installation is surface-mounted and on a horizontal surface.
The connection terminals are designed for max. 1.5 qmm
The basic double module is suitable for System M; a compact and modular system. The basic double module can be combined with two lights (Warn, Blitz, Kombi) or sounders from System M. The module is made of sturdy polycarbonate plastic in the colour black. The module can be mounted directly on the wall. Note: The connection terminals are designed for max. 1.5 qmm
The LED combination light is suitable for System M; a compact and modular system. The combination light can be combined with any System M base module and has three functions: Warning, Alarm 1 and Alarm 2. The functions can be controlled independently using separate contacts. The warning is signalled by a triple strobe light. The alarm can either be signalled as a strobe flash with 32 tones using DIP switch A or with a continuous light and also 32 tones using DIP switch B. Note: A base module is required for this product, please order separately.

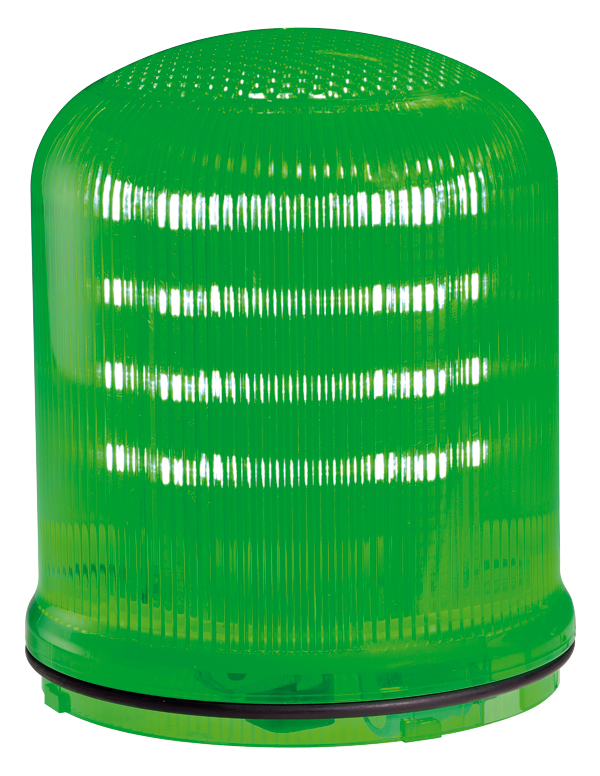

The LED warning light is suitable for System M; a compact and modular system. The warning light can be combined with any System M base module and has three functions: Permanent, rotating or flashing light. Note: A base module is required for this product, please order separately.
The LED warning light is suitable for System M; a compact and modular system. The warning light can be combined with any System M base module and has three functions: Permanent, rotating or flashing light. Note: A base module is required for this product, please order separately.
The LED warning light module in the flat version is suitable for System M; a compact and modular system. The warning light can be combined with any System M base module and has three functions: Permanent, flashing and double flashing light. The functions can be selected independently using integrated push-buttons. The module also has a Fresnel lens for a better range of light. A base module is required for this product, please order separately.
The deep base module is suitable for System M; a compact and modular system. The deep base module can be combined with a luminaire (Warn, Blitz, Kombi) or a sounder from System M. The product also has an M20 screw connection and is made of sturdy polycarbonate plastic in the colour white. The module can be mounted directly on a horizontal surface. Note: The connection terminals are designed for max. 1.5 qmm
The built-in base module is suitable for System M; a compact and modular system. The recessed base module can be combined with a light (Warn, Blitz, Kombi) or a sounder from System M. The module is made of sturdy polycarbonate plastic in the colour white and can be mounted directly on the suspended ceiling. Note: The connection terminals are designed for max. 1.5 qmm
