Signal lamp LED
Signal lamp LED
- LED warning light module
- Colour: green
- Light intensity: 16 Cd(p)
- Three functions (continuous light, rotating light and flashing light)
- Functions can be controlled independently of each other
- Designed for continuous operation
- For all base modules starting with item no. 389xx
| Device type: | Module light |
|---|---|

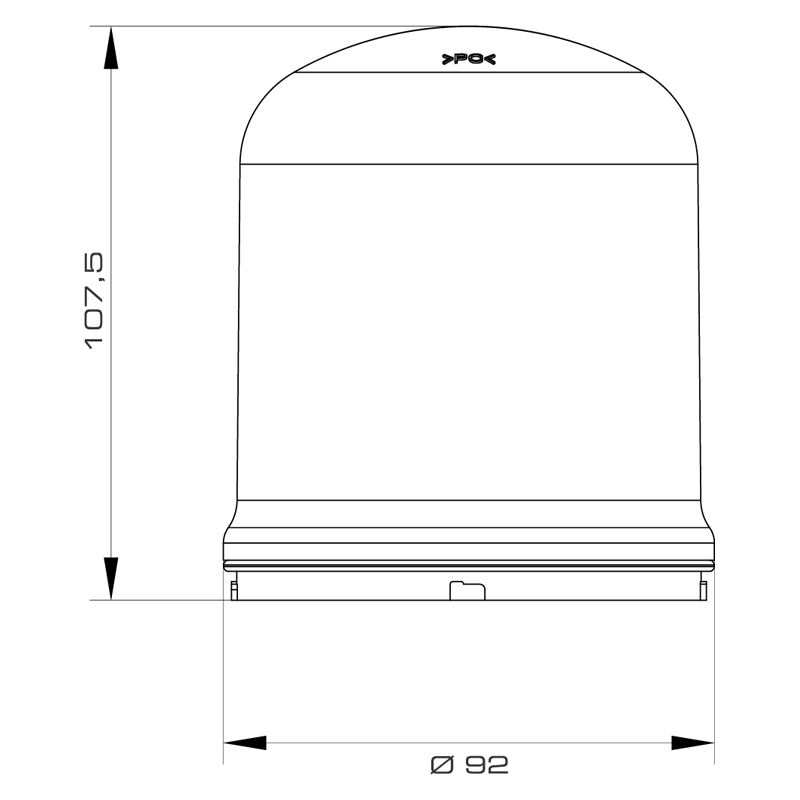

| Dimensions: | 92 (D) x 123 mm |
| Color: | Green |
| Duty cycle: | Continuous operation |
| Flash frequency: | Ca. 85 / min. |
| Functions: | Continuous, rotating and flash |
| Light intensity: | 16 CD(p) |
| Operating mode: | Independent control through integrated buttons |
| Power supply: | 12 – 24 V AC / DC, for Multivolt base modules |
| Protection class: | IP65 |
| Rotation frequency: | Ca. 140 / min. |
| Signal type: | Warning light |
| Temperature range: | -30 °C bis 55 °C |
The LED warning light is suitable for System M; a compact and modular system. The warning light can be combined with any System M base module and has three functions: Permanent, rotating or flashing light.
Note:
A base module is required for this product, please order separately.
