traffic light 2 LE
traffic light 2 LE
- 120 - 240 V AC

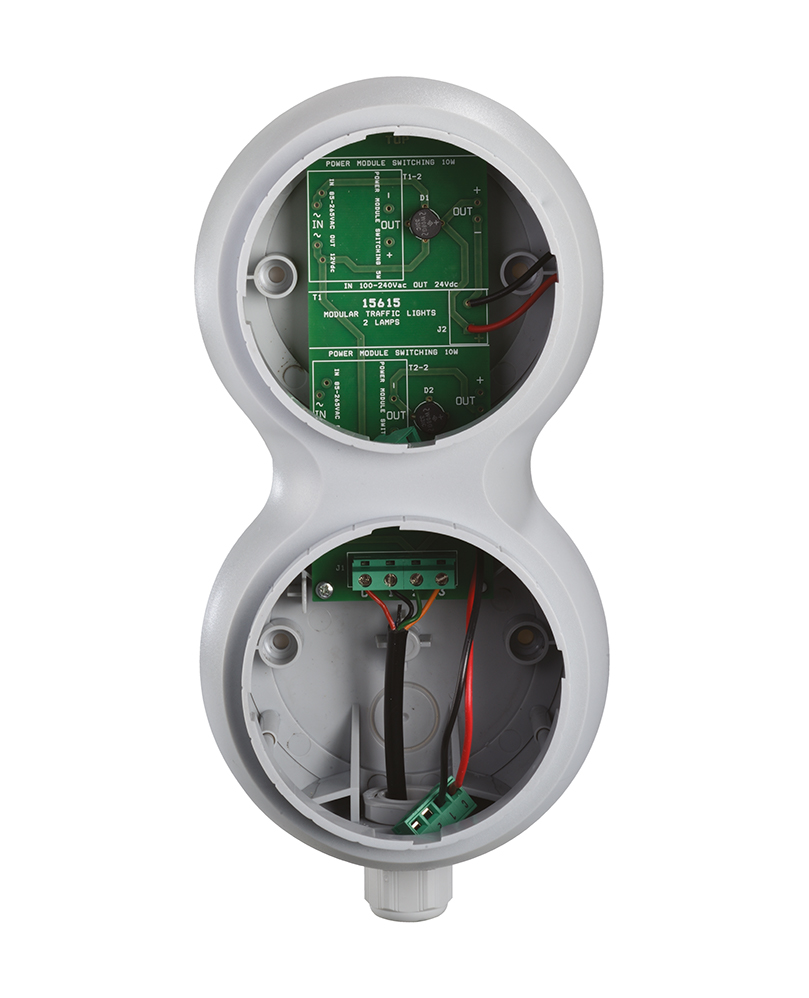

- Basic traffic light module for two light units
- For all modules starting with item no. 389xx
- Light modules must be ordered separately
- Surface mounting
| Device type: | Basic module |
|---|---|
| Dimensions: | 231x120x133mm |
| Color: | Gray |
| Installation: | Surface-mounted |
| Material / color: | Polycarbonate plastic, grey |
| Power supply: | 120 - 240V AC, 120 – 240V AC |
| Temperature range: | -25 °C bis 50 °C |
The basic traffic light module is suitable for System M; a compact and modular system. The basic traffic light module can be combined with two lights (Warn, Blitz, Kombi) or a sounder from System M.
The product also has an M20 screw connection and is made of sturdy polycarbonate plastic in grey. The module can be mounted directly on a vertical wall. The optional wall bracket (WHA 8910) gives you this option.
Note:
Wall bracket WHA 8910, item no. 38910
The connection terminals are designed for max. 1.5 qmm
The LED warning light module in the flat version is suitable for System M; a compact and modular system. The warning light can be combined with any System M base module and has three functions: Permanent, flashing and double flashing light. The functions can be selected independently using integrated push-buttons. The module also has a Fresnel lens for a better range of light. A base module is required for this product, please order separately.
The LED warning light module in the flat version is suitable for System M; a compact and modular system. The warning light can be combined with any System M base module and has three functions: Permanent, flashing and double flashing light. The functions can be selected independently using integrated push-buttons. The module also has a Fresnel lens for a better range of light. A base module is required for this product, please order separately
The swivelling wall bracket for the System M traffic light modules gives the traffic light modules extra stability and the option of swivelling these traffic lights. The holder is made of stainless steel and is stable, high-quality and therefore durable.
The LED multi-light is suitable for System M; a compact and modular system. The multi-light can be combined with any System M base module and has three colours: red, yellow, green and, like the light intensity and light mode, can be controlled independently using integrated push-buttons. The light intensity can be set in the following steps: (33%, 66%, 100%). A base module is required for this product, please order separately.
The sounder module is suitable for the System M; a compact and modular system. The sounder has two functions (Alarm 1, Alarm 2). In addition, the module has 32 tones that can be used via DIP switch A; a further 32 tones can be set via DIP switch B. The extremely high volume is set via integrated push-buttons. This product requires a base module, please order this separately. Matching base modules (System M): Flat base module, BMF 8911, item no. 38911 Basic module deep, BMT 8912, item no. 38912 Basic module wall, BMW 8913, item no. 38913 Double basic module, BDW 8916, item no. 38916 Flat basic module, BMF 8991, item no. 38991 Basic module deep, BMT 8992, item no. 38992 BME 8993, item no. 38993
The LED warning light module in the flat version is suitable for System M; a compact and modular system. The warning light can be combined with any System M base module and has three functions: Permanent, flashing and double flashing light. The functions can be selected independently using integrated push-buttons. The module also has a Fresnel lens for a better range of light. A base module is required for this product, please order separately.
