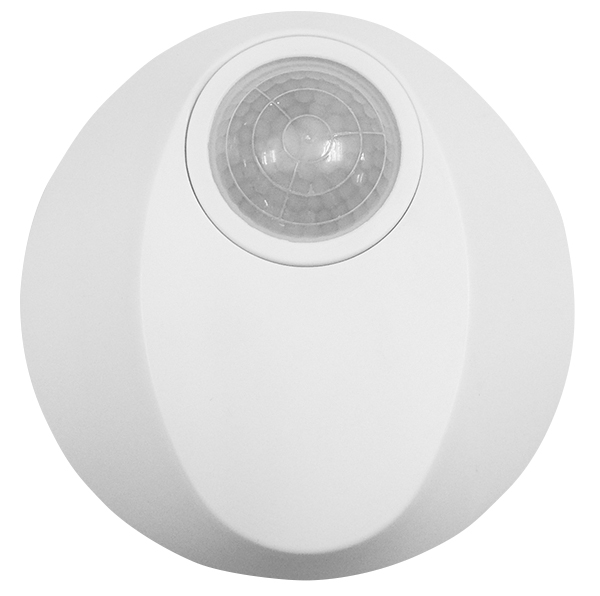

motion detector
motion detector
- PIR motion detector (passive infrared sensor)
- Colour: white
- Detection angle of 360°
- Detection range 16 m
- Response sensitivity infinitely adjustable
- Adjustable switch-off delay
- Ceiling surface mounting
Content:
1 Stück
Product number:
94503
| Device type: | motion detector |
|---|---|
| Dimensions: | Ø 115 x 50 mm |
| Color: | White |
| Energy-saving lamp switching capacity: | 600VA / 400W |
| Fluorescent lamp switching capacity: | 1000VA / 600W |
| Incandescent lamp switching capacity: | 2000W |
| Installation: | Construction |
| Monitoring area: | 360° |
| Operating temperature: | 0 °C bis 45 °C |
| Power supply: | 220 – 240 V (50 / 60 Hz) |
| Protection class: | IP54 |
| Range: | 16 m (at an installation height of 10 m) |
| Response sensitivity: | 10 – 100,000 lux |
| Switch-off delay: | 5 s to 30 min (adjustable) |
| Switching capacity HV halogen lamps: | 1000W |
| Switching capacity LED lamps: | 400W |
| Switching capacity NV halogen lamps: | 1000VA |
| Technology: | PIR (Passive Infrared Sensor) |
Our passive infrared motion detector is specially designed for high ceilings and offers a range of advanced functions. Equipped with a floating contact, it enables precise detection of movement in a monitoring area of 360° with a range of up to 16 metres in diameter at a mounting height of 10 metres. The individually adjustable switch-off delay, variable from 5 seconds to 30 minutes, enables flexible adaptation to the requirements of the respective environment. The response sensitivity is infinitely adjustable, from 5 lux to daylight, to optimise operation in different lighting conditions.
The motion detector has an IP54 protection rating and is therefore ideally suited for outdoor use. Ist robust construction ensures reliable performance, even in demanding outdoor conditions. This high-quality presence detector offers the necessary precision and adaptability for a wide range of indoor and outdoor applications.
