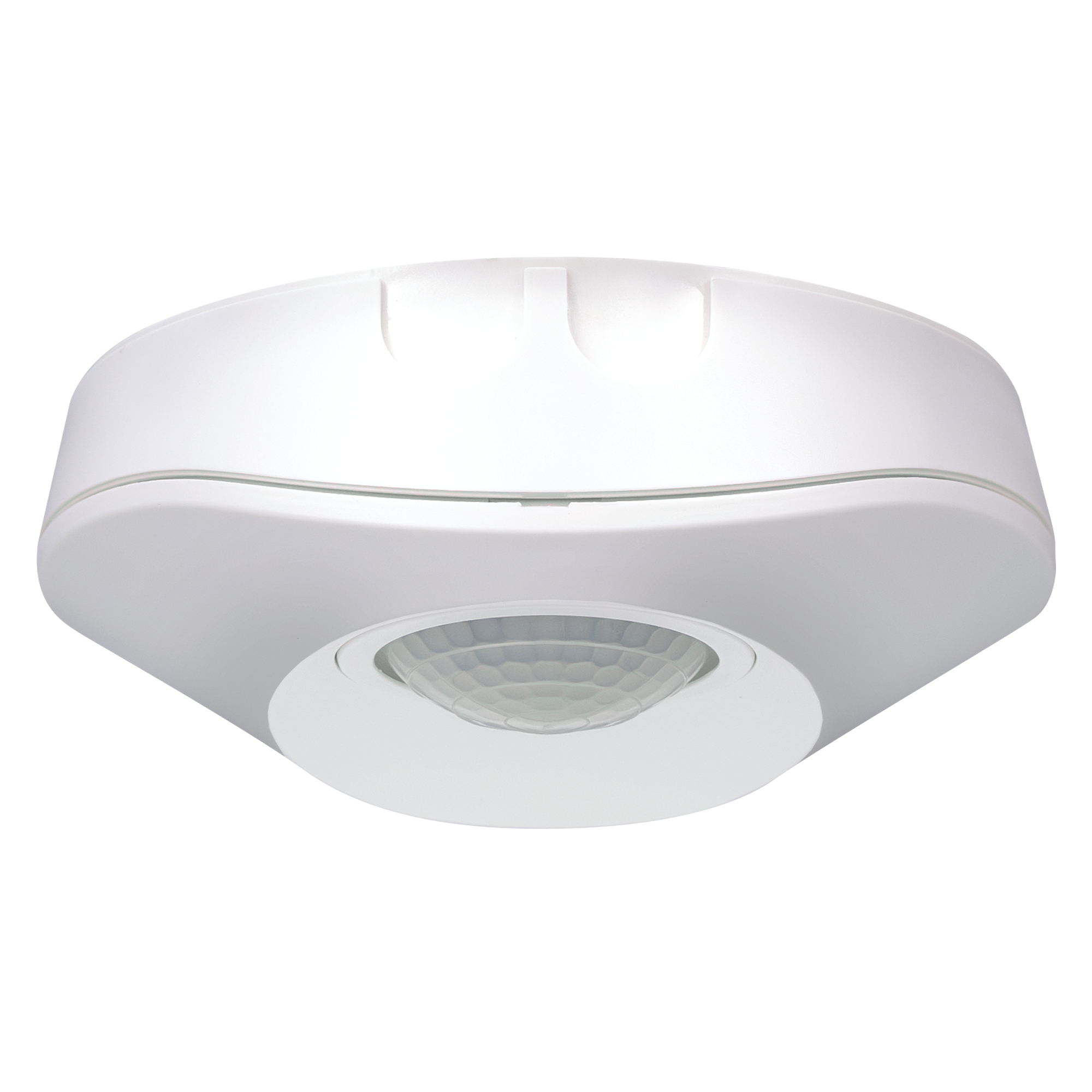

motion detector wall mount
motion detector wall mount
- PIR motion detector (passive infrared sensor)
- Colour: white
- Detection angle of 360°
- Detection range from 2 m to max. 6 m
- Response sensitivity infinitely adjustable
- Adjustable switch-off delay
- Ceiling surface mounting
Content:
1 Stück
Product number:
94500
| Device type: | motion detector |
|---|---|
| Dimensions: | Ø 113 x 39 mm |
| Active power: | 1.6W |
| Color: | White |
| Fluorescent lamp switching capacity: | 400W |
| Incandescent lamp switching capacity: | 2300W |
| Installation: | Construction |
| Monitoring area: | 360° |
| Operating temperature: | -10 °C bis 45 °C |
| Power supply: | 230V AC, 50Hz |
| Protection class: | IP40 |
| Range: | 2 – 6 m (at a mounting height of 2.40 m) |
| Response sensitivity: | 5 – 1000 lux |
| Switch-off delay: | T1: 6 seconds to 12 minutes T2: 10 seconds to 30 minutes |
| Switching capacity HV halogen lamps: | 1000W |
| Switching capacity LED lamps: | 250W |
| Technology: | PIR (Passive Infrared Sensor) |
Our passive infrared motion detector offers an effective solution for detecting movement indoors. Equipped with 2 outputs - one potential-bound and one potential-free output - this detector offers versatile connection options. The response sensitivity is infinitely adjustable and ranges from 5 to 1000 lux, allowing the detector to be adapted to different lighting conditions. With a generous monitoring range of 360° and a range of 6 metres, the motion detector reliably detects movement. You can choose between two switch-off delays: T1 with settings from 6 seconds to 12 minutes or T2 with settings from 10 seconds to 30 minutes to adjust the switching after motion is detected.
The presence detector complies with protection class IP40 and is therefore ideally suited for indoor use. This detector offers an efficient way of detecting movement indoors and is an ideal addition to your lighting or security systems.
