motion detector lamp installation
motion detector lamp installation
- High-frequency motion detector
- For installation in luminaires
- Detection angle of 360°
- Detection range of 10 m
- Adjustable switch-on time
- Response sensitivity infinitely adjustable
Content:
1 Stück
Product number:
94520
| Device type: | motion detector |
|---|---|
| Dimensions: | 90x51x31mm |
| Color: | White |
| Energy-saving lamp switching capacity: | 100W |
| Fluorescent lamp switching capacity: | 150W |
| Frequency: | 5.8GHz |
| Incandescent lamp switching capacity: | 1000W |
| Installation: | Installation, Installation in luminaire |
| Monitoring area: | 360° |
| Operating temperature: | 0 °C bis 70 °C |
| Power supply: | 230V AC 50Hz |
| Range: | 10 m (at a mounting height of 2.5 m) |
| Response sensitivity: | 5 Lux to ∞ (adjustable) |
| Switch-off delay: | 10 seconds to 30 minutes (adjustable) |
| Switching capacity HV halogen lamps: | 200VA |
| Switching capacity LED lamps: | 150W |
| Switching capacity NV halogen lamps: | 200W |
| Technology: | High frequency |

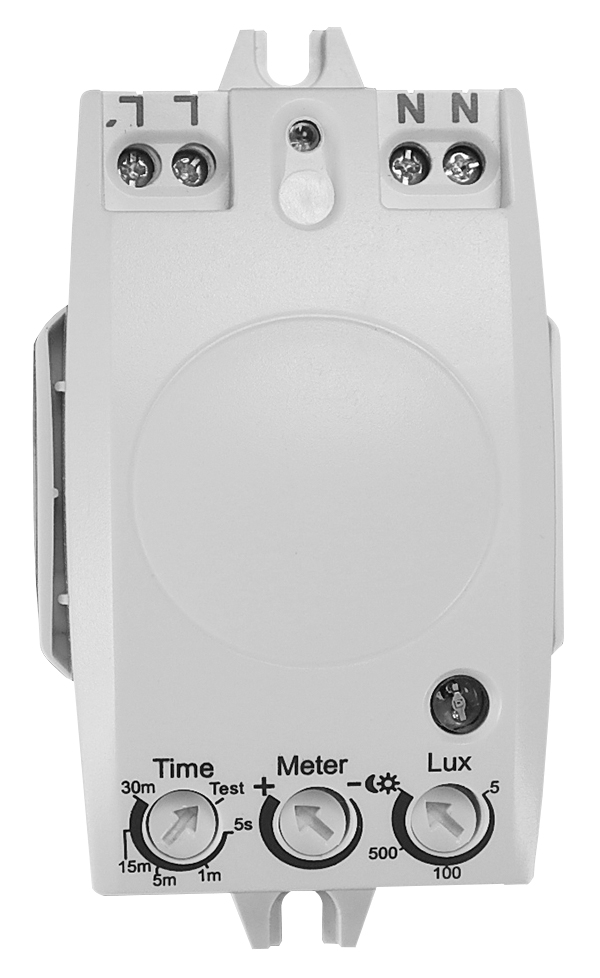

The high-frequency motion detector operates at a frequency of 5.8 GHz and offers a wide range of possible applications. It is specially designed for installation in luminaires or their housings. The response sensitivity of the motion detector is infinitely adjustable, allowing precise customisation to individual requirements. With a generous monitoring range of 360° and a diameter of 10 metres at a mounting height of 2.5 metres, the motion detector detects movement over a wide area. The switch-on time is flexibly adjustable and can be varied between 5 seconds and 30 minutes to adapt the light activation accordingly.
In addition, the detector has a channel for switching the light, which enables direct control and adjustment of the lighting by the motion detector. Our motion detector offers a reliable and flexible solution for automated lighting systems in your building.
