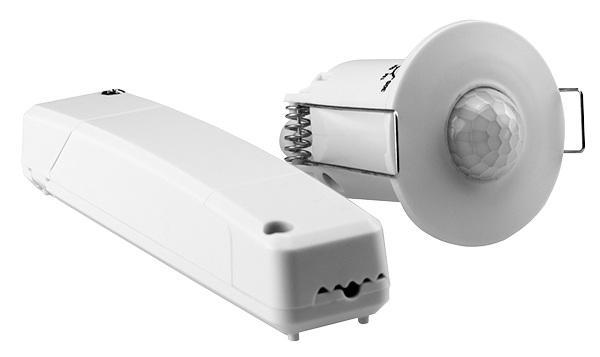

motion detector for ceiling installation
motion detector for ceiling installation
- PIR motion detector (passive infrared sensor)
- Connection box included
- Colour: white
- Detection angle of 360°
- Detection range 8 m
- Response sensitivity infinitely adjustable
- Retriggering by e.g. voices
- Adjustable switch-off delay
- Ceiling surface mounting
Content:
1 Stück
Product number:
94506
| Device type: | motion detector |
|---|---|
| Dimensions: | Ø 50 mm |
| Energy-saving lamp switching capacity: | 500W |
| Fluorescent lamp switching capacity: | 500W |
| Hole: | 38mm |
| Incandescent lamp switching capacity: | 2000W |
| Installation: | Installation |
| Installation depth: | 55mm |
| Monitoring area: | 360° |
| Operating temperature: | -20 °C bis 40 °C |
| Powerbox: | 130x25x28mm |
| Power supply: | 220 – 240 V AC, 50 Hz |
| Protection class: | IP40 |
| Range: | 8 m (at a mounting height of 2.5 m) |
| Switch-off delay: | Adjustable 30 s to 30 min |
| Switching capacity HV halogen lamps: | 1000W |
| Switching capacity LED lamps: | 500W |
| Technology: | PIR (Passive Infrared Sensor) |
Our passive infrared motion detector impresses with its flat design and flexibility in customisation. The response sensitivity can be set continuously to react precisely to movement. The output of the motion detector is potential-free, which ensures compatibility with various systems. In addition, the motion detector has a sound detection function after detecting movement and can be triggered again by sounds such as voices. It is also possible to set the noise detection to cater for specific requirements. These features make it an ideal choice for locations where precise and customisable motion detection is required.
