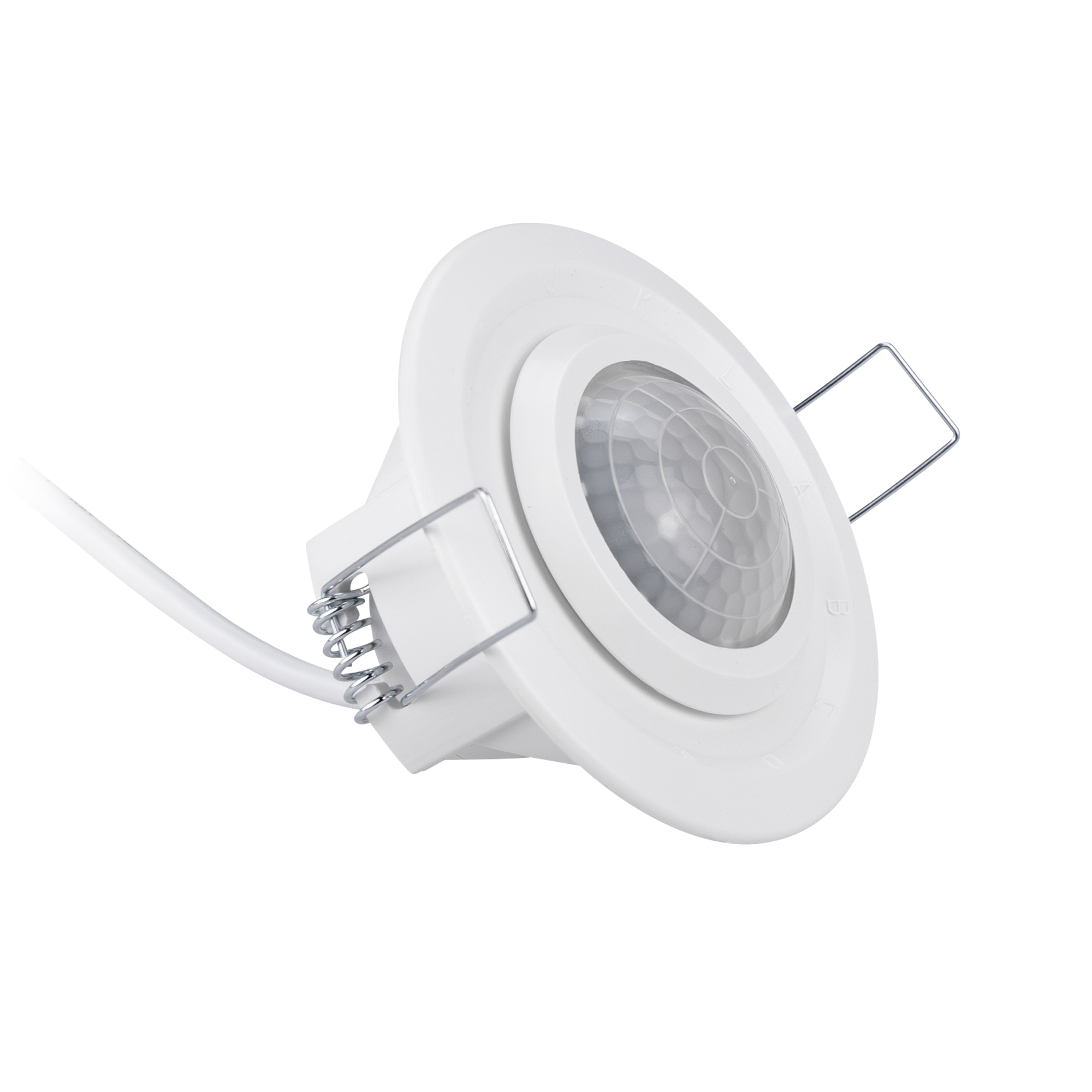

motion detector flush mount
motion detector flush mount
- PIR motion detector (passive infrared sensor)
- Colour: white
- Detection angle of 360°
- Detection range from 2 m to max. 6 m
- Response sensitivity infinitely adjustable
- Adjustable switch-off delay

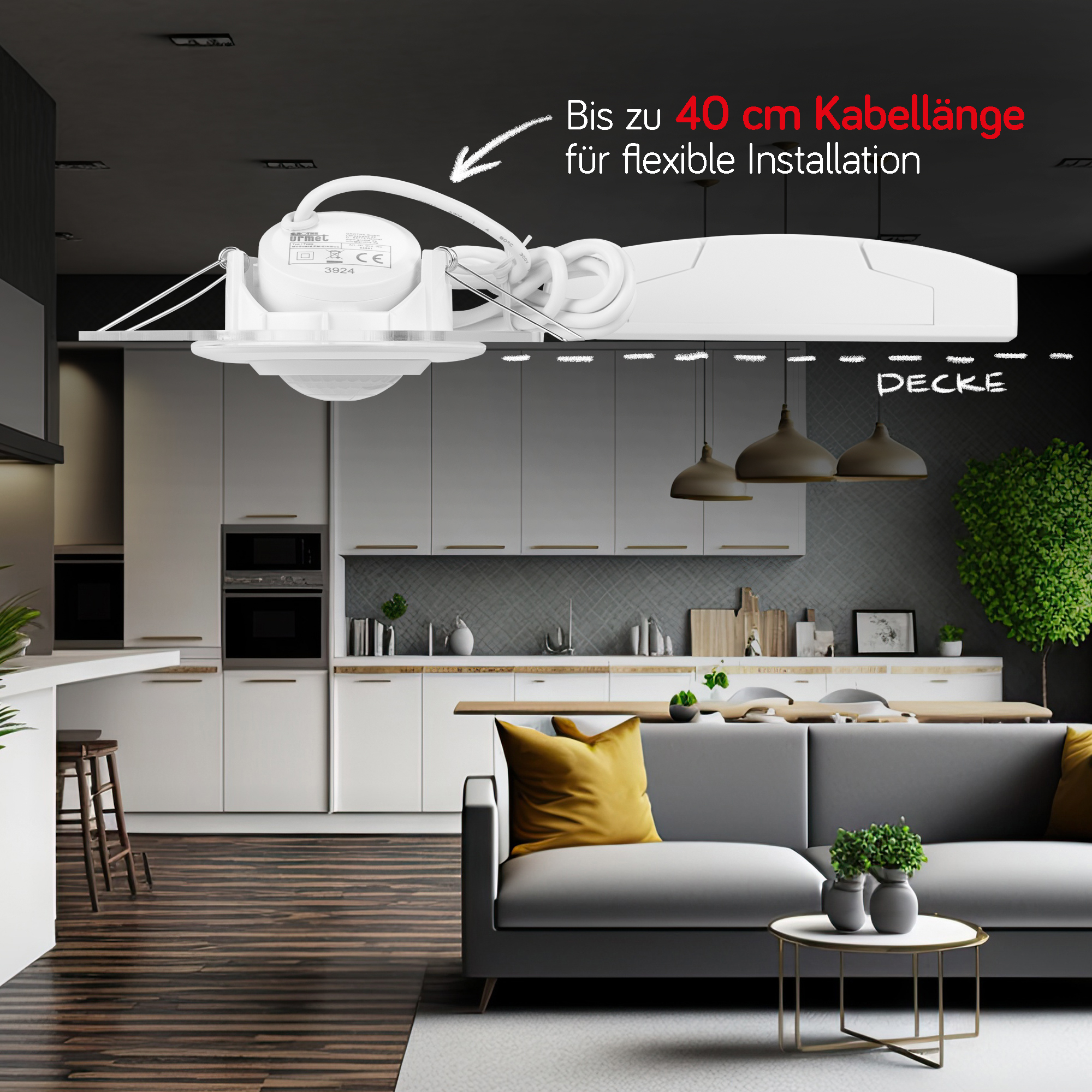

- Ceiling surface mounting
Content:
1 Stück
Product number:
94501
| Device type: | motion detector |
|---|---|
| Active power: | 1.3W |
| Color: | White |
| Control box dimensions: | 110x53x30mm |
| Fluorescent lamp switching capacity: | 400W |
| Incandescent lamp switching capacity: | 2000W |
| Installation: | Installation |
| Monitoring area: | 360° |
| Operating temperature: | 0 °C bis 45 °C |
| Power supply: | 220 – 240V AC, 50 / 60 Hz |
| Protection class: | Sensor: IP44 Power Box: IP20 |
| Range: | – 6 m (at an installation height of 6 m) |
| Response sensitivity: | 5 – 1000 lux |
| Sensor dimensions: | Ø78x50mm |
| Switch-off delay: | T1: 6 seconds to 12 minutes T2: 10 seconds to 30 minutes |
| Switching capacity HV halogen lamps: | 1000W |
| Technology: | PIR (Passive Infrared Sensor) |
Our passive infrared motion detector including control box offers an effective solution for detecting movement indoors. Equipped with 2 outputs - one potential-bound and one potential-free output - this detector offers versatile connection options. The response sensitivity is infinitely adjustable and ranges from 5 to 1000 lux, allowing the detector to be adapted to different lighting conditions. With a generous monitoring range of 360° and a range of 6 metres, the motion detector reliably detects movement. You can choose between two switch-off delays: T1 with settings from 6 seconds to 12 minutes or T2 with settings from 10 seconds to 30 minutes to adjust the switching after motion is detected.
The sensor has an IP40 protection rating, making it ideal for indoor use, while the control box itself has an IP20 protection rating. This detector offers an efficient way of detecting movement indoors and is an ideal addition to your lighting or security systems.
