Storey plate
Storey plate
- Solid stainless steel V4A
- Extremely vandal-proof
- Surface / flush mounting
- Pre-assembly plate included
Content:
1 Stück
Product number:
55551
| Device type: | Bell button simple |
|---|---|

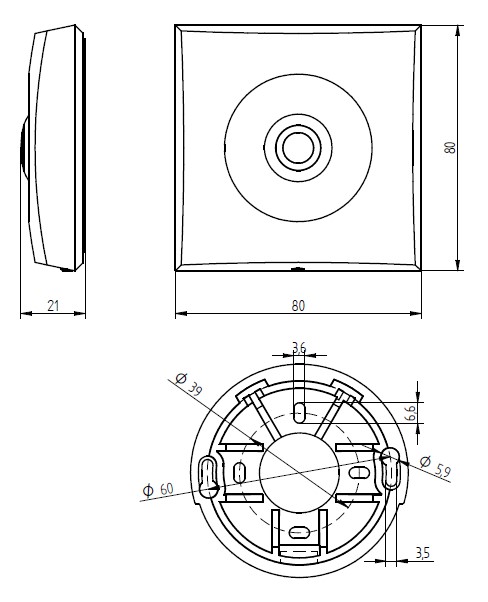

| Dimensions: | 82 x 82 x 21 mm |
| Button: | PROTACT 150 V4A |
| Form: | Square |
| Installation: | Mounting with pre-mounting plate, Surface-mounted |
| Material: | Edelstahl V4A, stainless steel |
| Max. switching capacity: | 12V AC/DC 1.5A |
| Min. switching capacity: | 5V / 1mA |
| Number of buttons: | 1 |
| Operating temperature: | -20 °C to 50 °C |
| Protection class: | IP40 |
ETA S 110 V4A
This bell button is not only made of solid V4A stainless steel, but is also extremely vandal-resistant thanks to its smooth contours and precise button guidance. Its high-quality design blends seamlessly into any house wall.
Note:
The bell button can be either surface-mounted or flush-mounted using a pre-mounting plate (adapter), which is included in the scope of delivery.).
