Sounder
Sounder
- Requires 240 V AC (0.044 A)
- 32 tone sequences
- Continuous tone, slow or fast pulsating
- Volume: max. 100 dB(A)
- Magnetic dynamic loudspeaker
- Adjustable volume / progression
- High sound pressure with low power consumption
Content:
1 Stück
Product number:
38782
| Device type: | Sounder |
|---|---|

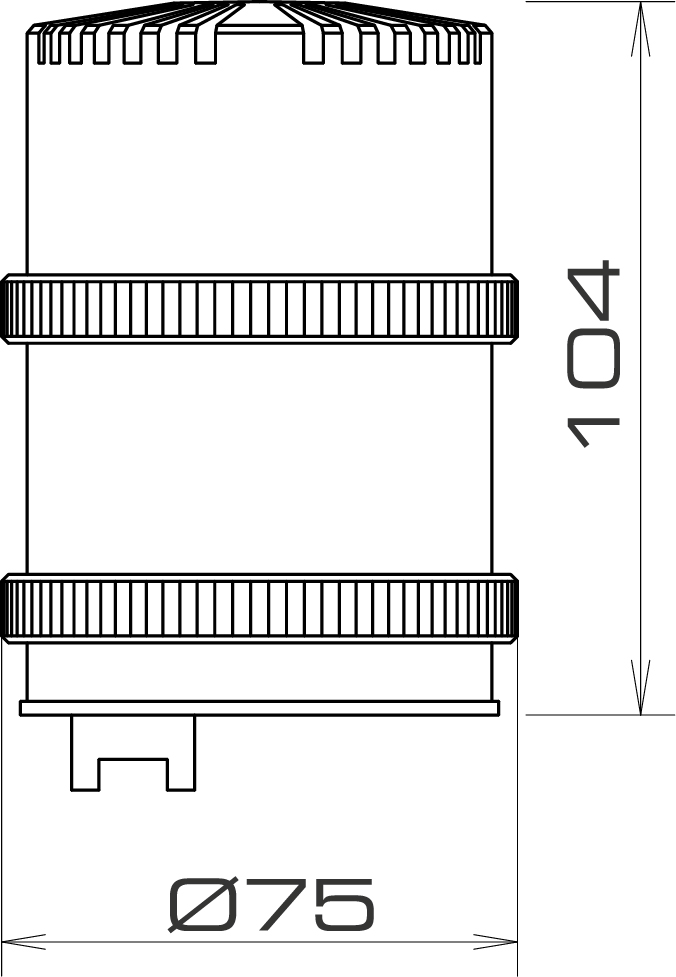

| Dimensions: | 75 (D) x 116 mm |
| Functions: | 32 tone sequences adjustable via dip switch |
| Operating mode: | Continuous tone, slow or fast pulsating |
| Operating temperature: | -30 °C bis 60 °C |
| Power supply: | 240V AC, 240V AC (0.044A) |
| Protection class: | IP54 |
| Suitable for: | TSZ8600 |
| Volume: | max. 100 dB(A), adjustable |
| Weight: | 0.24kg |
Our multifunctional sounder is a key element in System T when it comes to realising acoustic signals in a wide range of applications. As the top element in a module tower, this device offers an impressive combination of functions. With an extremely high volume, the sounder provides unmistakable warnings and notifications. You can choose from 32 different tone sequences, which are conveniently adjustable via DIP switches, allowing you to customise the audible signals to your specific requirements. The reliable magneto-dynamic sound generation system ensures consistent and reliable performance.
Another advantage is the high sound pressure this device produces even with low power consumption, which not only increases efficiency but also saves energy. In addition, you can adjust the volume and volume progression according to your needs to precisely customise the acoustic output. This multifunctional sounder is the ideal choice for creating reliable and customisable acoustic signals in your System T.
Note:
Includes bayonet catch (with special toothing as vibration protection and maximum safety thanks to complete contact protection, even when replacing modules)
Duration of the acoustic signals as long as voltage is applied.
