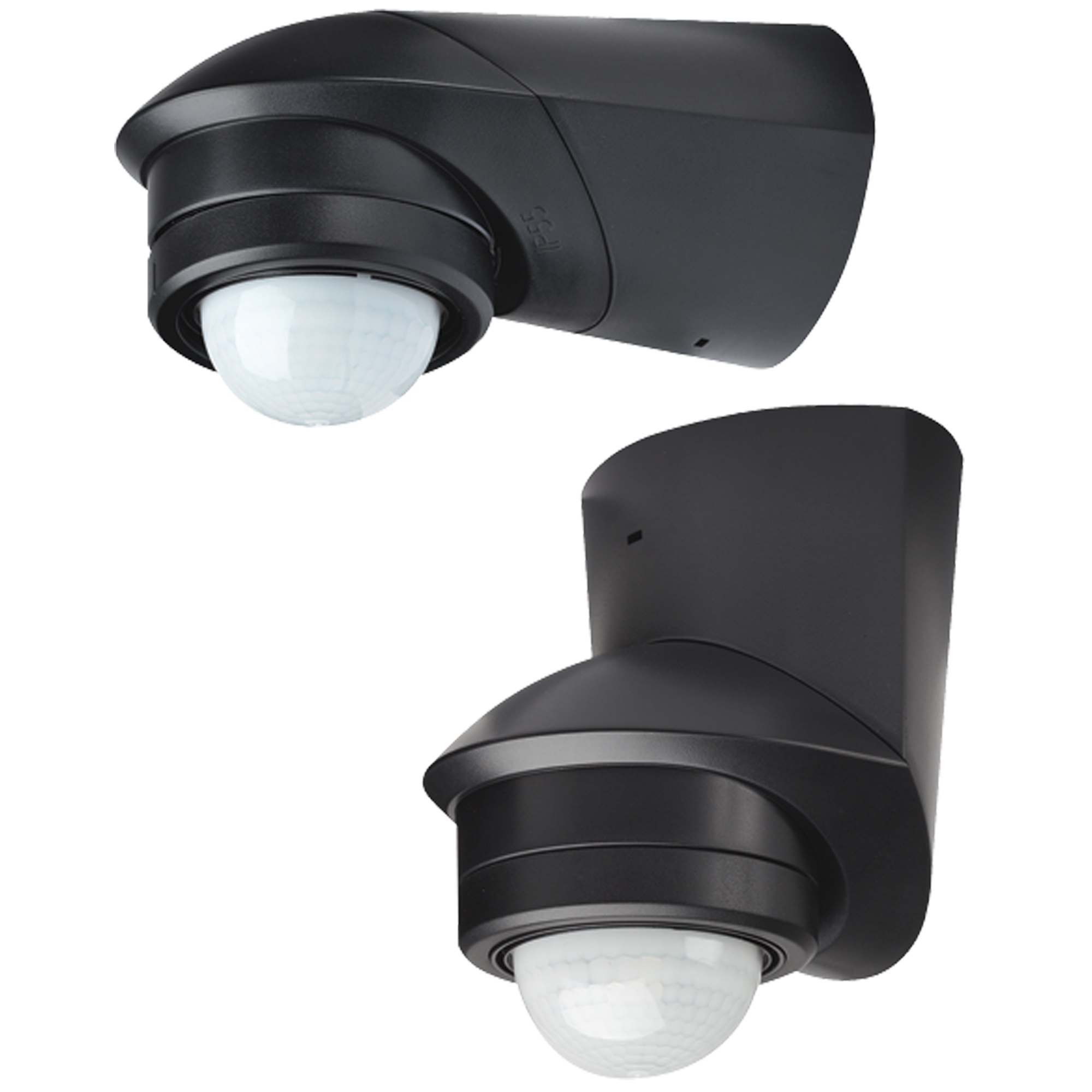

Motion Detector professional 240
Motion Detector professional 240
- PIR motion detector (passive infrared sensor)
- Colour: black
- Detection angle of 240°
- Detection range up to 12 m
- Creep protection
- Adjustable switch-off delay
- Range infinitely adjustable
- For wall and corner installation
- Universal bracket included
Product number:
94534
| Device type: | motion detector |
|---|---|
| Dimensions: | 78x84x120mm |
| Active power: | 0.9W |
| Ambient temperature: | -10 bis 45 C° |
| Color: | Black |
| Detection angle: | 240° |
| Energy-saving lamp switching capacity: | 250W |
| Fluorescent lamp switching capacity: | 400VA |
| Incandescent lamp switching capacity: | 1100W |
| Installation: | Construction |
| Power supply: | 220 – 240 V AC |
| Protection class: | IP55 |
| Range: | 12 m (at an installation height of 2.50 – 3 m) |
| Switch-off delay: | 3 s to 20 min (adjustable) |
| Switching capacity LED lamps: | 200W |
| Technology: | PIR (Passive Infrared Sensor) |
| Undercrawl protection: | 1 m (radius) |
BM240sw
Our passive infrared motion detector offers versatile installation options on walls and in corners. With a generous monitoring range of 240° and a monitoring range of up to 12 metres at a mounting height of 2.50 to 3 metres, it ensures reliable detection of movement.
The motion detector also has creep protection with a radius of 1 metre to detect movements in the immediate vicinity. The switch-off delay is adjustable and can be varied from 3 seconds to 20 minutes, allowing flexible adaptation to individual requirements.
The scope of delivery includes a universal bracket that supports simple and flexible installation. With an IP55 protection rating, this motion detector is suitable for outdoor use and offers reliable motion detection and monitoring for outdoor areas.
| CE-Declaration |
|---|
| CE_Konform_McGuard_Professional_2023-11-07 |
