Motion Detector mini 180
Motion Detector mini 180
- PIR motion detector (passive infrared sensor)
- Colour: white (similar to RAL 9003)
- Detection angle 180°
- Detection range 12 m
- Adjustable switch-on time
- Response sensitivity adjustable
- Wall mounting
Content:
1 Stück
Product number:
94513
| Device type: | motion detector |
|---|---|
| Dimensions: | 64x98x87 |
| Active power: | 0.7W |
| Color: | White (similar to RAL 9003) |
| Energy-saving lamp switching capacity: | max. 10 x 40 W |
| Fluorescent lamp switching capacity: | max. 10 x 40 W |
| Incandescent lamp switching capacity: | 1000W |
| Installation: | Construction |
| Monitoring area: | 180° |
| Power supply: | 230V AC, 50Hz |
| Protection class: | IP44 |
| Range: | 12 m (at an installation height of 2.5 m) |
| Response sensitivity: | Infinitely adjustable) |
| Switch-off delay: | 5 seconds to 12 minutes (adjustable) |
| Technology: | PIR (Passive Infrared Sensor) |

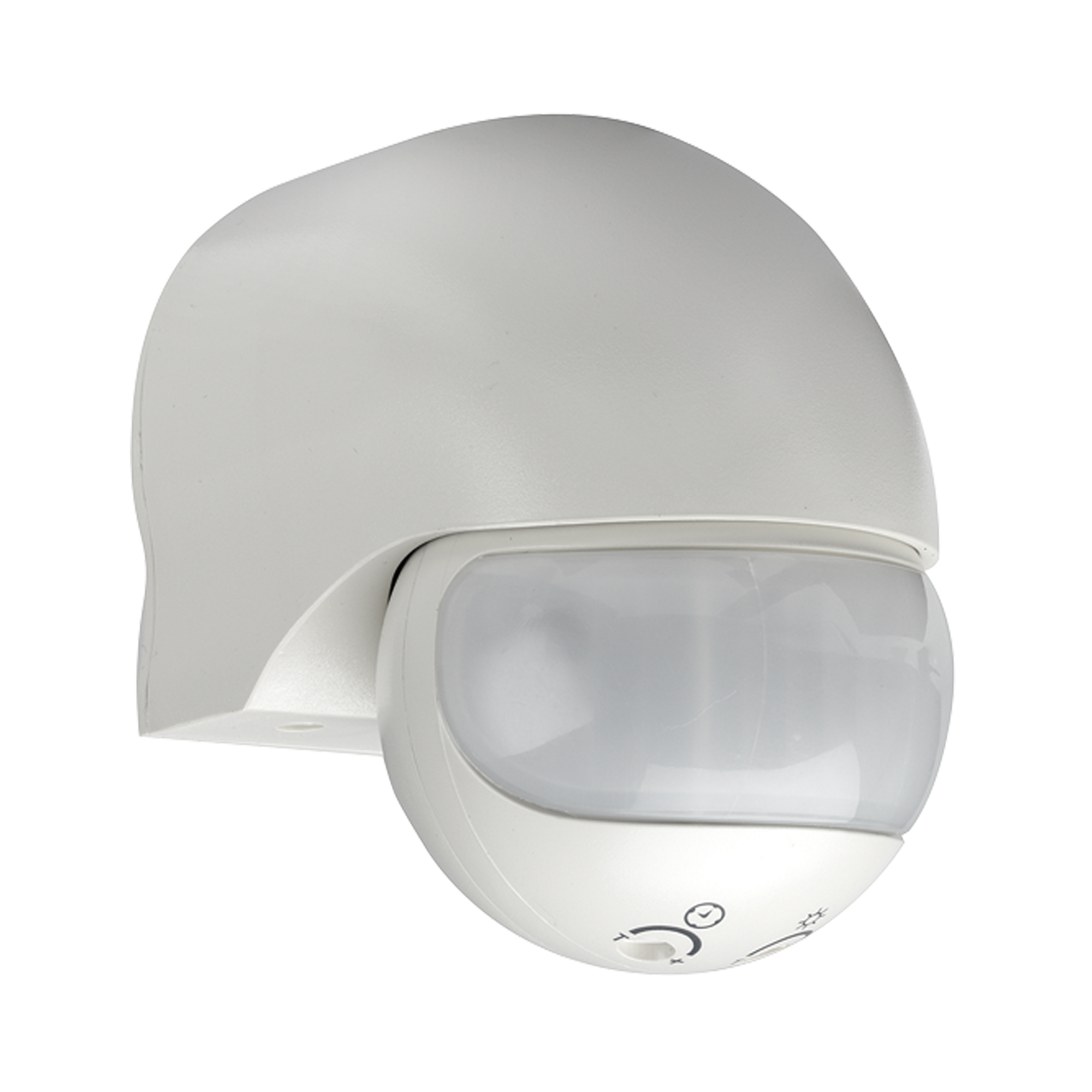

The McGuard mini BM180ws is a passive infrared motion detector that provides precise monitoring. Its response sensitivity can be set continuously to meet individual requirements. With a monitoring range of 180° and a range of 12 metres at a mounting height of 2.50 metres, it detects movements reliably and effectively. The switch-on time is flexibly adjustable and can be varied between 5 seconds and 12 minutes to adapt the light activation of the lamps connected to the motion detector accordingly. The motion detector can be mounted on the wall and is perfect for outdoor use.
The McGuard mini BM180ws is the ideal choice for reliable motion detection and lighting control in outdoor areas.
