Montilux
Montilux
- Single push-button (snap disc)
- Weather-resistant plastic
- Illuminated nameplate (LED)
- Surface mounting
- Simple installation thanks to clamp connection
- Can be bayed
- PU: 10 pieces
| Device type: | Bell button simple |
|---|---|

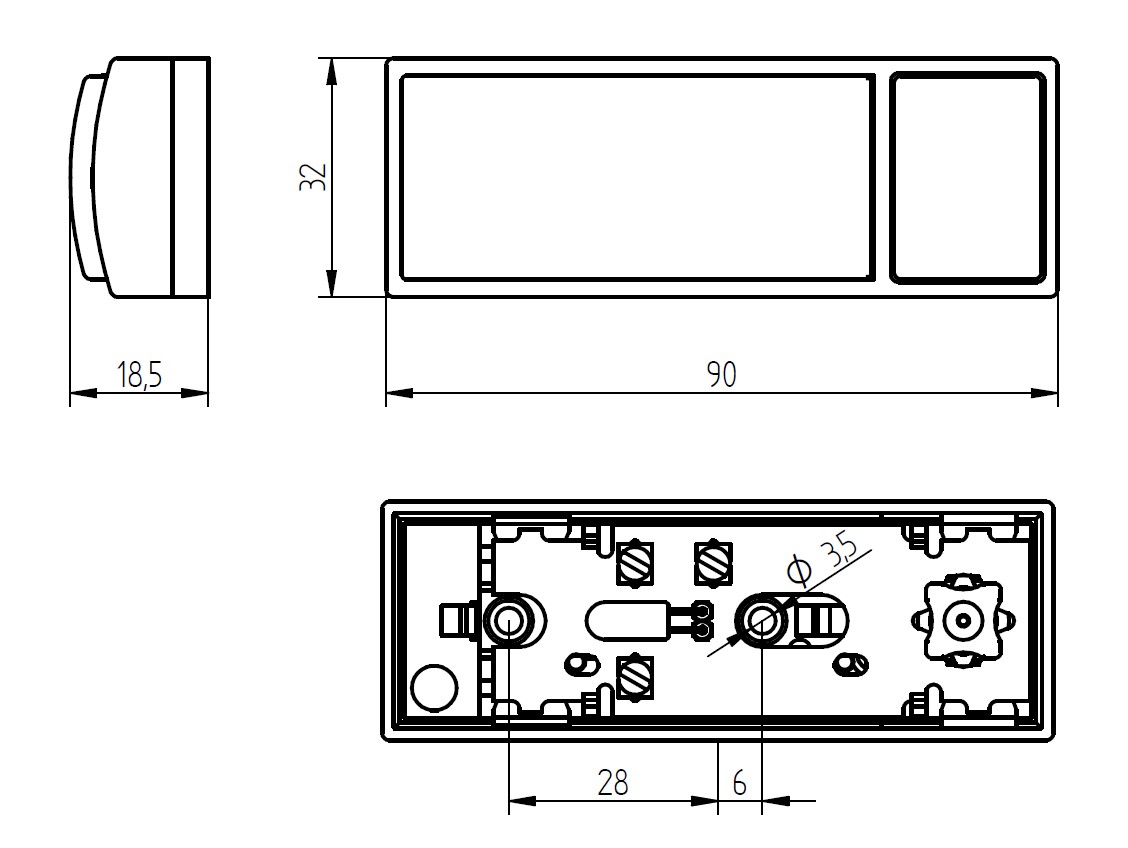

| Dimensions: | 32 x 18 x 90 mm |
| Color: | White (RAL 9010) |
| Form: | Rectangular |
| Installation: | Surface-mounted |
| Lighting: | LED (8 – 12 V AC / DC 10 mA) |
| Material: | plastic |
| Nameplate: | Illuminated |
| Number of buttons: | 1 |
| Switching capacity: | Max. 12 V AC / DC (50 mA – 1,5 A) |
| Temperature range: | -20 °C to 50 °C |

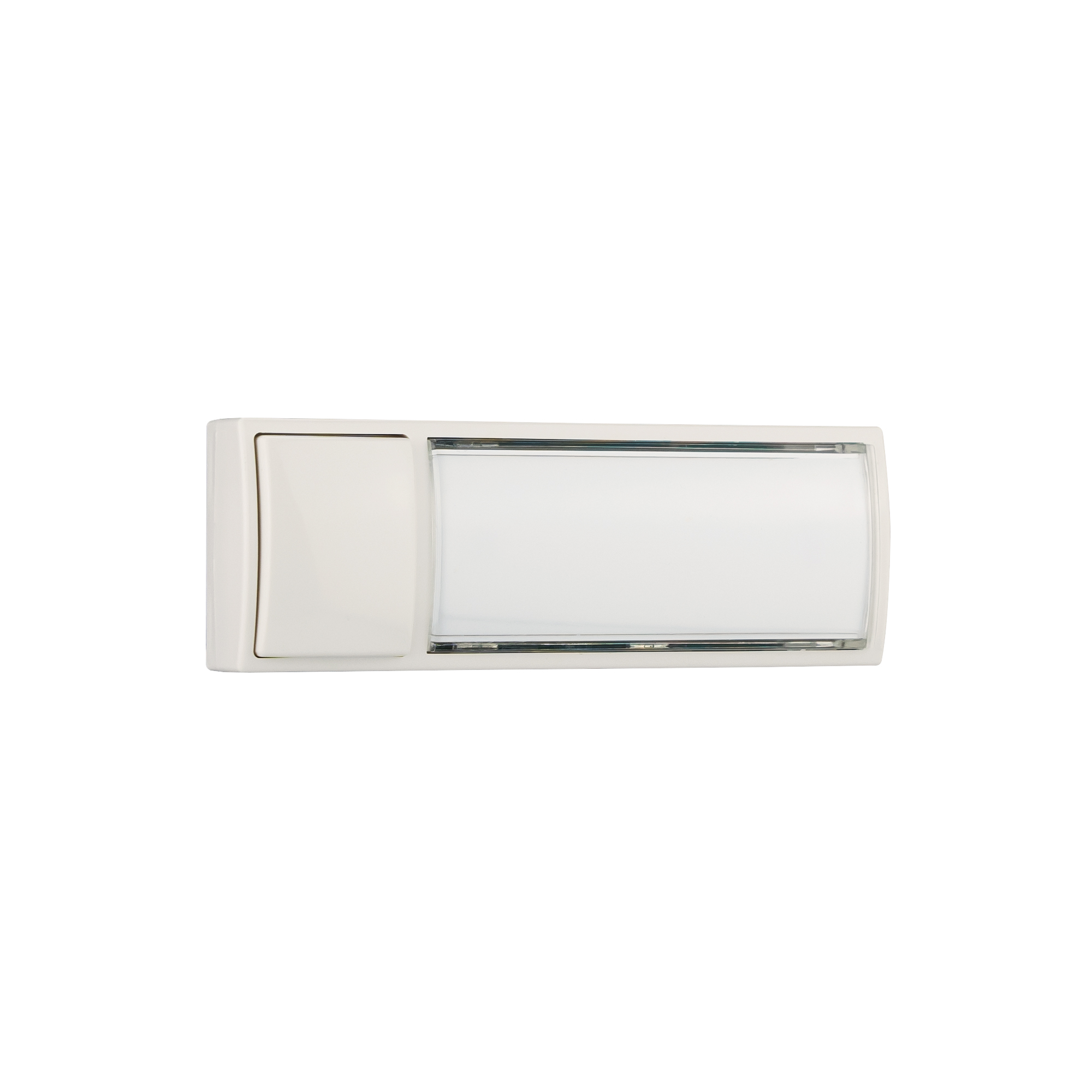

Montilux 2154

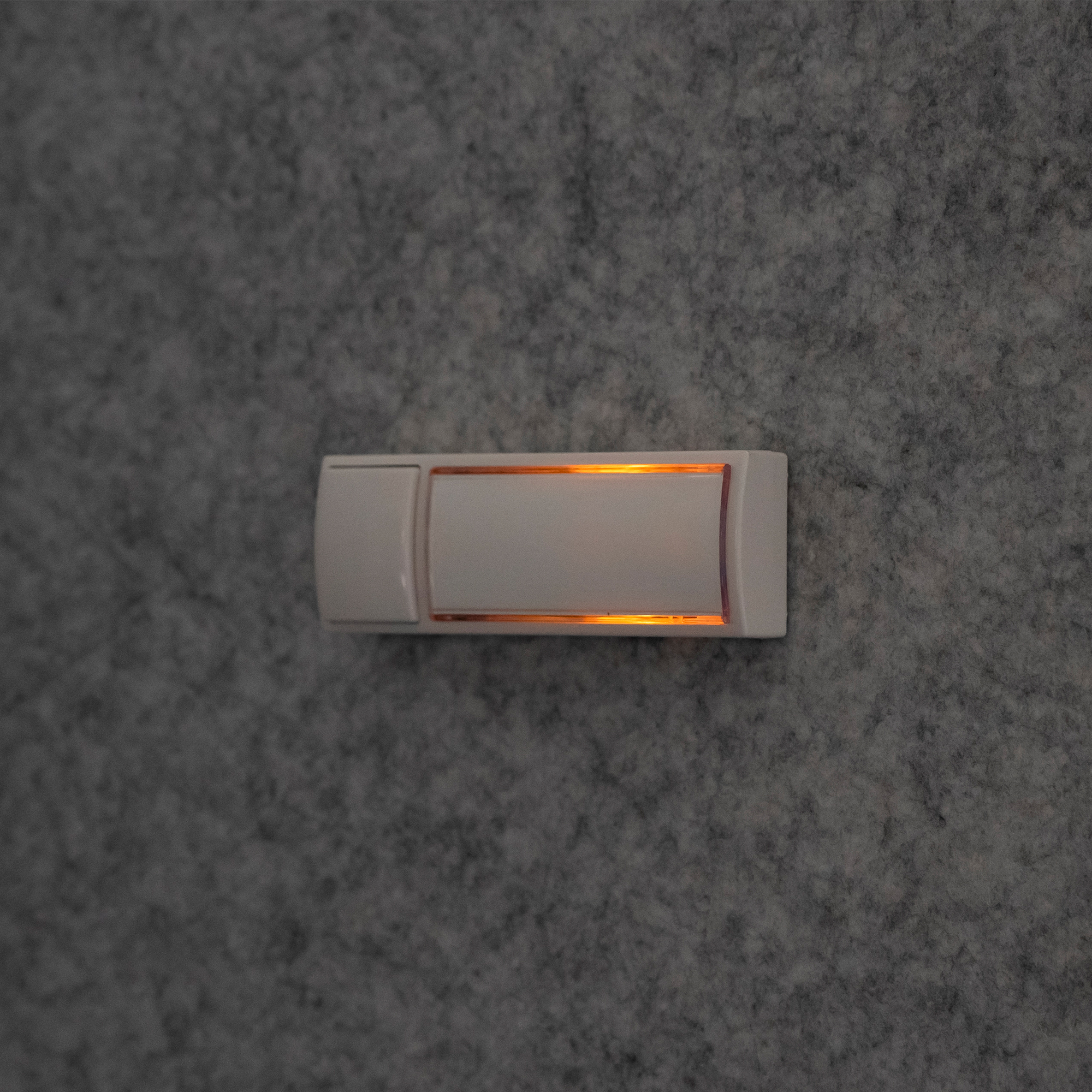

The Montilux combines simple design with impressive technology. The bell button has a very good tactile feel when used and a high level of quality thanks to its weather-resistant plastic. The design of the Montilux is rounded off with an illuminated nameplate, which guarantees high legibility of the name even in a dark environment. The bell button is attached to the wall with two screws and connecting clips.
Note:
This product is only available in packs of 10
| Manual |
|---|
| INSTALLATIONSANLEITUNG_51011_MONTILUX-2154_2024-11-11 |
| CE-Declaration |
|---|
| CE_Konform_MONTILUX_2154_2022-04-01 |
GTN 3139 Our doorbell transformers are specially designed for use with doorbells, doorbells, chimes and door openers in residential areas, where they are active for short periods of time. In contrast, safety transformers are designed for continuous and permanent operation. Grothe's bell and safety transformers are equipped with a PTC (Positive Temperature Coefficient), which protects the transformer on the primary side in the event of short circuits or overloads. If the PTC is triggered due to an overload or short circuit, the transformer is temporarily de-energised for at least 1 minute so that it can then be put back into operation. All our transformers fulfil the strictest environmental protection requirements and have been tested and certified in accordance with EN61558. Note: A higher output voltage occurs at low load or no-load operation! After a short circuit, recommissioning takes place by briefly disconnecting the primary side from the mains. (At least 1 minute)(Exception: GT 50810) Accessories AP mounting set: Includes two cover caps to achieve protection class IP20 and mounting rails and material for surface mounting, art. No. 14936
