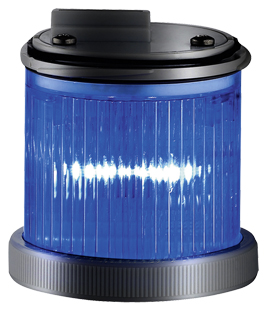

LED warning/blinking light
LED warning/blinking light
- Requires 24 V AC/DC (30 mA)
- Colour: blue
- Light intensity: 1 Cd(p)
- 360° all-round radiation
- Designed for continuous operation
- Integrated SMD LEDs
- Choice of warning or flashing light
Product number:
38625
| Device type: | warninglight |
|---|---|

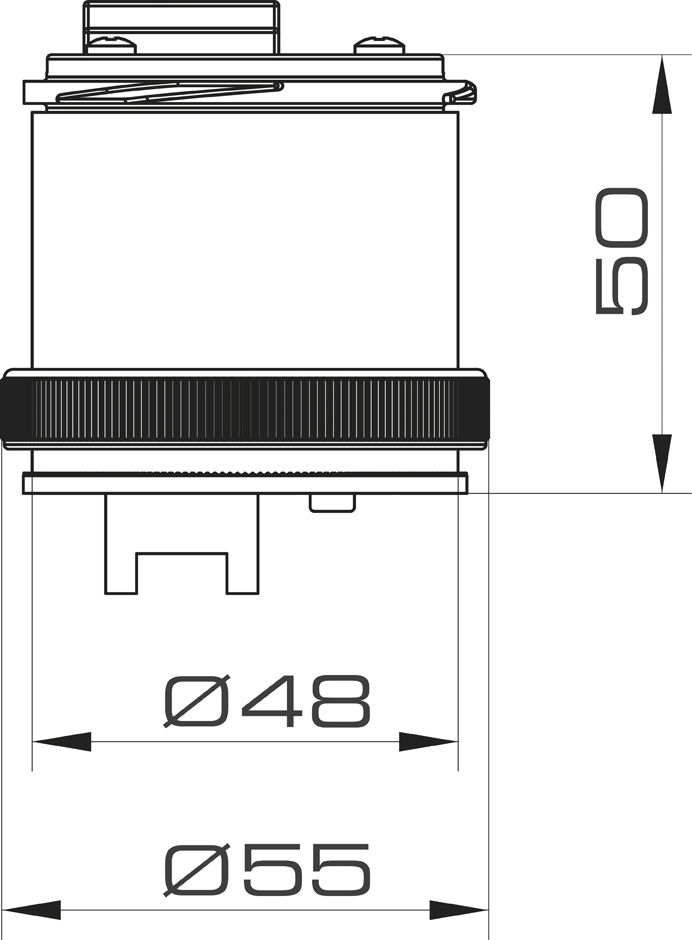

| Dimensions: | 55 (D) x 66 mm |
| Series: | System T-Mini |
| Color: | Blue |
| Duty cycle: | Continuous operation |
| Flash frequency: | approx. 110 / min |
| Functions: | Warning or flashing light |
| Light intensity: | 1 CD(p) |
| Light source: | Integrated SMD LEDs |
| Operating temperature: | -30 °C to +50 °C |
| Power consumption: | 0,72 W |
| Power supply: | 24 V AC/DC (30 mA), 24V AC/DC |
| Protection class: | IP65 |
| Signal type: | Warning/flashing light |
| Suitable for: | System T-Mini (MSZ 8610, MWB 862x) |
| Weight: | 0.05kg |
Our extremely reliable flashing light modules set new standards in terms of safety and warning effect. Equipped with an exceptionally high luminosity, they offer optimum visibility and attention. This is achieved through the use of super-bright LEDs that ensure a uniform 360-degree all-round beam. These modules offer various functions, including continuous light, single flashing mode, double flashing mode (xenon effect) and triple flashing mode. Even in the most demanding industrial environments, our flashing light modules maintain their maximum reliability.
The secret lies in their robust construction and the materials from which they are made. The lamp lenses and housings are made of impact-resistant polycarbonate, which is self-extinguishing and therefore offers additional safety. In addition, our flashing light modules offer complete contact protection, which ensures maximum safety.
Note:
Attention: Please always order base element MSZ, item no. 38610 and fastening elements separately!
