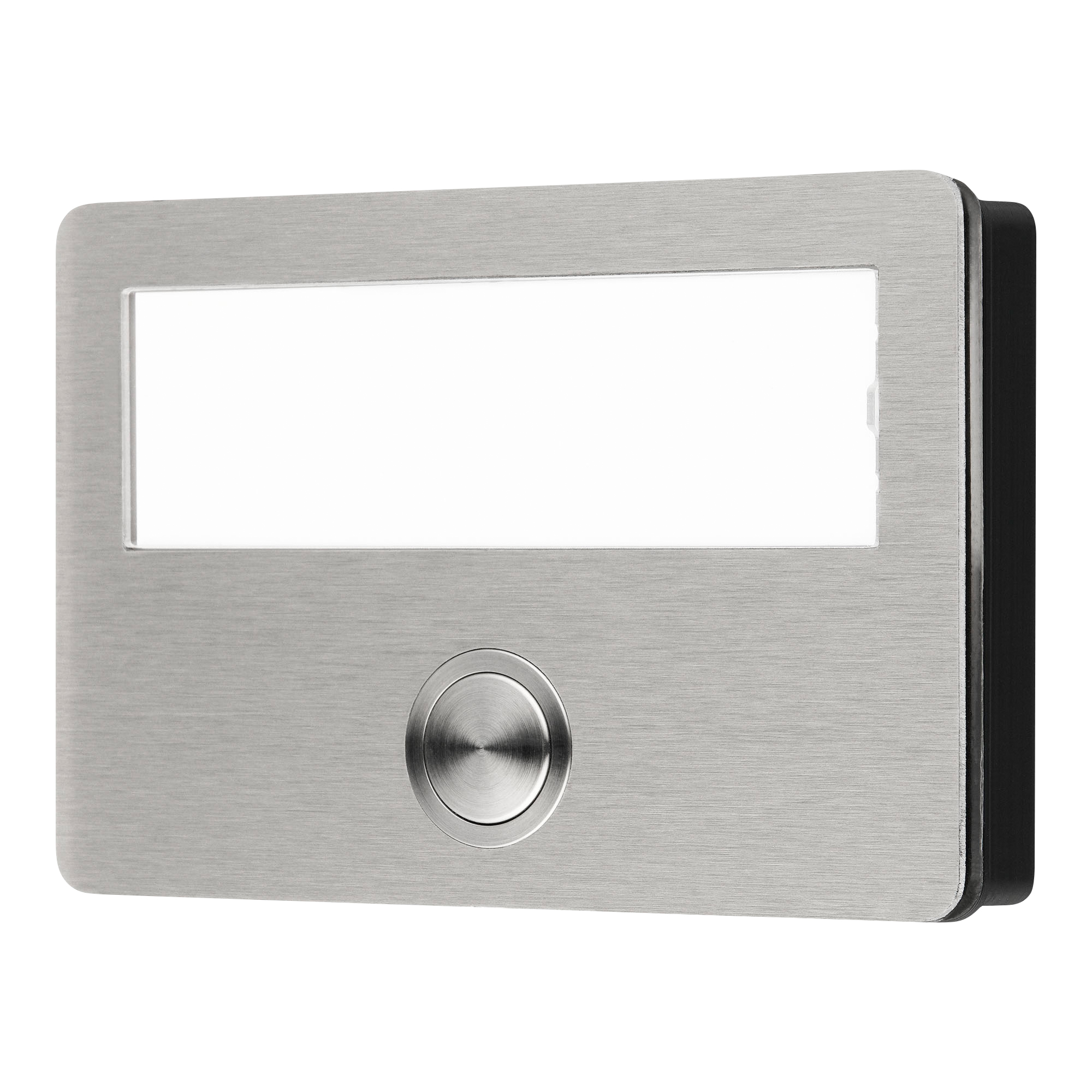

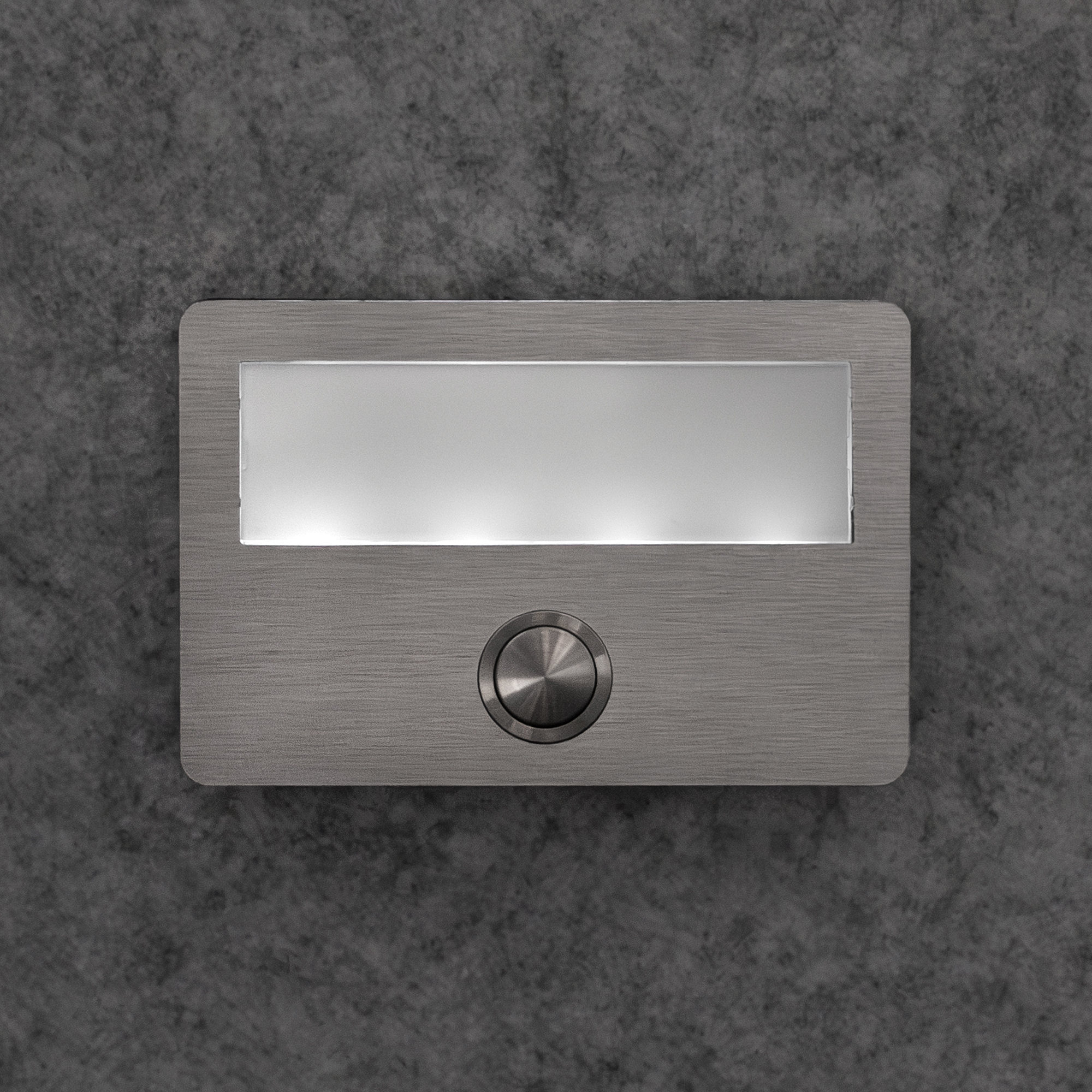

Klingeltaster 1 WE ETA 740 LED V4A AP
Klingeltaster 1 WE ETA 740 LED V4A AP
| Device type: | Bell button simple |
|---|---|
| Installation: | Surface-mounted |
| Material: | stainless steel |
| Number of buttons: | 1 |
ETA 740 LED V4A AP, 1WE
Die Etagenplatte ETA 740 LED V4A AP ist mit einem großen, beleuchteten LED-Namensschild ausgestattet. Die Front besteht aus V4A-Stahl und ist mit einem PROTACT 750 V4A-Taster versehen. Die Spannungsversorgung erfolgt von der Rückseite und ist nicht von außen einsehbar. Das hat den Vorteil, dass nach der Montage keine Befestigungsschrauben sichtbar sind.
Hinweis:
Inklusive Aufputz-Rahmen in Schwarz
Verbauter Taster: PROTACT 750 V4A (62304)
| Additional Information |
|---|
| Herstellergarantie_Grothe |
| Manufacturer-warranty_Grothe |
GTN 3158 Our doorbell transformers are specially designed for use with doorbells, doorbells, chimes and door openers in residential areas, where they are active for short periods of time. In contrast, safety transformers are designed for continuous and permanent operation. Grothe's bell and safety transformers are equipped with a PTC (Positive Temperature Coefficient), which protects the transformer on the primary side in the event of short circuits or overloads. If the PTC is triggered due to an overload or short circuit, the transformer is temporarily de-energised for at least 1 minute so that it can then be put back into operation. All our transformers fulfil the strictest environmental protection requirements and have been tested and certified in accordance with EN61558. Note: A higher output voltage occurs at low load or no-load operation! After a short circuit, restart by briefly disconnecting the primary side from the mains. (Exception: GT 50810) Accessories AP mounting set: Includes two cover caps to achieve protection class IP20 and mounting rails and material for surface mounting, art. No. 14936
Our classic electromechanical Grothe dual-tone doorbell offers a sound experience of the highest quality. Equipped with sound plates made of real bell steel, this doorbell produces a clear and rich tone that is not only easy to hear, but also offers a pleasant sound quality. The tried and tested conventional technology ensures maximum durability and reliability. The housing is finished in a timeless white and has a white high-gloss front, which gives the doorbell an appealing look. You have the choice of operating the doorbell with either an external transformer or a 9 V block battery (type 6LR61), which gives you more installation freedom. Note: Only install in dry rooms! Recommended transformer when using the external power supply: GT 3148, item no. 14201 Additionally with compartment for 9 V block battery (type 6LR61) Battery not included in the scope of delivery
