Electronic chime ECHO black
- High-gloss finish
- Includes software for melodies
- Suitable in conjunction with bell buttons
- Customised melodies can be recorded (SD card)
- LED flash light
- Separate flash / sound generation deactivation possible
- Range: 500 m
- 2-fold call differentiation
- Battery operation / external power supply
Gongmelodien
Das bewährte "Ding Dong!" oder doch lieber was Modernes? Der ECHO selbst hat 9 vorinstallierte Melodien, die mit zusätzlichen Tönen von einer beigelegten CD erweitert werden können.
Sound 1
Sound 2
Sound 3
Sound 4
Sound 5
Sound 6
Sound 7
Sound 8
Sound 9
| Device type: | Electronic gongs |
|---|---|

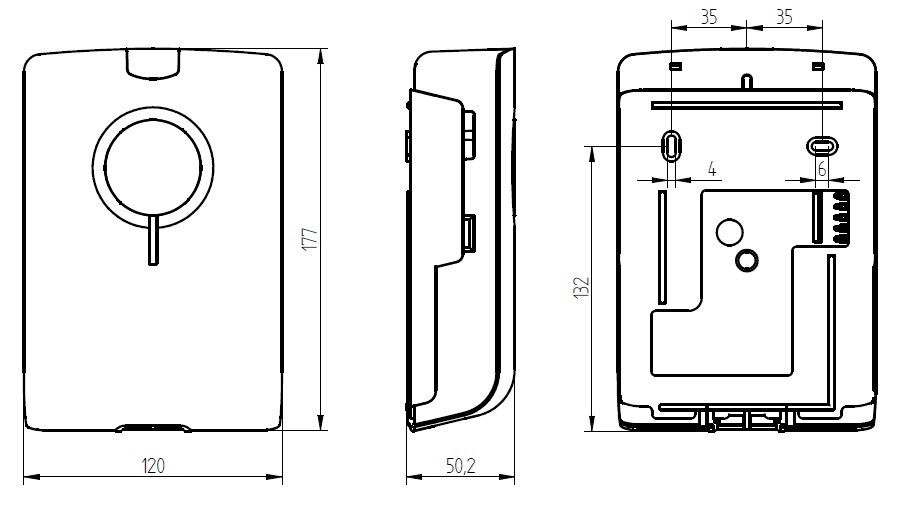

| Dimensions: | 180x120x50mm |
| Series: | ECHO |
| Call distinction: | 2-way |
| Color: | Black, Black-and-white |
| External power supply: | 8 – 12 V AC / DC |
| Flashlight: | LED |
| Number of melodies: | 9 Melodien |
| Power supply: | 4 x 1,5 V Batterien Typ LR14/C (Nicht im Lieferumfang), 8 - 12 V AC/DC |
| Software: | For ringtone generation |
| Surface: | gloss |
| Total ringtone duration: | 90 s brilliant sound |
| Transmission ringtones: | Micro SD card (not included) |
| Volume: | Max. 83 dB(A) adjustable |
ECHO 120, black
The special thing about the ECHO 120 is that it has a brilliant hi-fi sound and can be customised with your own melodies using an SD card. Using the software included in the scope of delivery, you can edit your personalised ringtones and transfer them to the SD card. Thanks to the extremely powerful LED flash light, the ECHO is also ideal for people with hearing problems, making it an excellent companion for senior citizens. Another useful feature of the ECHO is the so-called "LOW battery" indicator, which signals that the battery is almost empty so that you won't be surprised by an empty doorbell.
But our doorbell can do more than just be loud! If you want to have some peace and quiet, you can easily mute the doorbell using the mute function, which is also visually indicated by the doorbell.
Note:
Ring tones can have a maximum duration of 90 seconds.
The doorbell is designed for wall mounting.
Batteries not included in the scope of delivery!
Do not clean the high-gloss surface with a microfibre cloth. Do not use cleaning agents and only wipe with a damp cloth.
