Bell transformer
Bell transformer
- Suitable for electrical distribution boards / flat distribution boards
- 8 / 12 V AC (2,0 / 1,5 A) | 18 VA
- For top hat rail mounting
- For doorbells, doorbells, chimes and door openers
- Short-circuit proof due to PTC
- Short-time load up to 20 seconds
- Tested according to: EN61558-2-8:2011
- Certified / labelled with ENEC mark
Content:
1 Stück
Product number:
14073
| Device type: | Bell transformer |
|---|---|
| Dimensions: | 90x36x65mm |
| Duty cycle: | Short-term exposure 20 s |
| Operating mode: | Short-term operation |
| Primary voltage: | 230V AC (50Hz) |
| Secondary power: | 2.0 / 1.5A |
| Secondary voltage: | 8 / 12 V AC |
| Short-circuit proof: | By PTC |
| Type: | Bell transformer |
| Version: | Short-circuit proof |
| Width: | 2 HP |

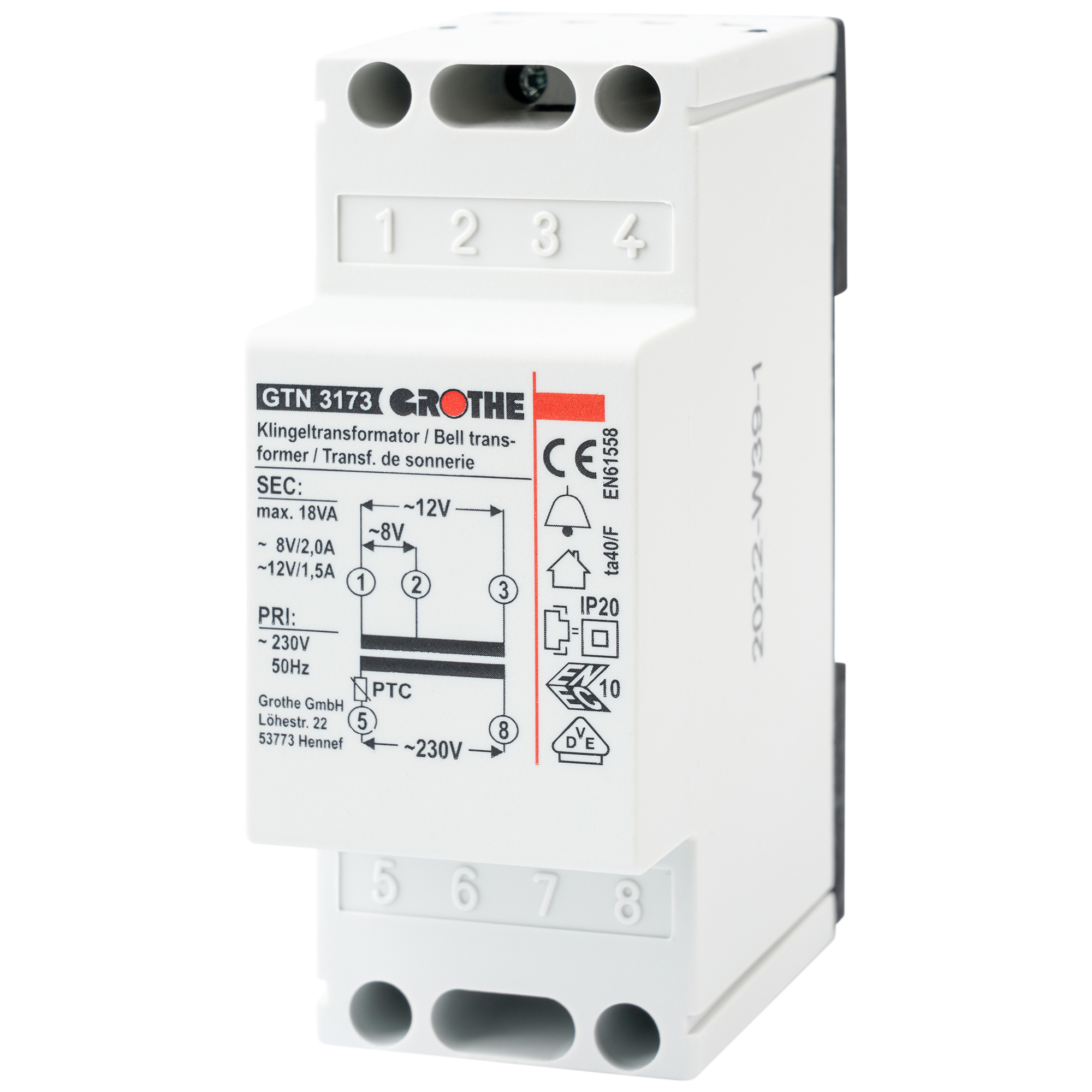

GTN 3173
Our doorbell transformers are specially designed for use with doorbells, doorbells, chimes and door openers in residential areas, where they are active for short periods of time. In contrast, safety transformers are designed for continuous and permanent operation. Grothe's bell and safety transformers are equipped with a PTC (Positive Temperature Coefficient), which protects the transformer on the primary side in the event of short circuits or overloads.
If the PTC is triggered due to an overload or short circuit, the transformer is temporarily de-energised for at least 1 minute so that it can then be put back into operation. All our transformers fulfil the strictest environmental protection requirements and have been tested and certified in accordance with EN61558.
Note:
A higher output voltage occurs at low load or no-load operation!
After a short circuit, restart by briefly disconnecting the primary side from the mains. (Exception: GT 50810)
Accessories AP mounting set:
Includes two cover caps to achieve protection class IP20 and mounting rails and material for surface mounting, art. No. 14936
| Manual |
|---|
| Installationsanleitung_Transformatoren_MV014310_RevF_2025-04-11 |
| CE-Declaration |
|---|
| CE_Konform_GTNxxGrotheKL-Trafos_2021-11-20 |
| Additional Information |
|---|
| Herstellergarantie_Grothe |
| Manufacturer-warranty_Grothe |
Skip product gallery
Wall-mounted installation kit
Product number:
14936
Surface mounting set for two sub-units This mounting set allows you to surface-mount a transformer with a width of two sub-units (36 mm). As soon as this mounting set is attached to the transformer, the transformer is given a protection rating of IP20.
