Basic modul wall
Basic modul wall
- For 12 - 24 V AC / DC
- For all modules starting with item no. 389xx
- Wall mounting
- Surface mounting
| Device type: | Basic module |
|---|---|
| Dimensions: | 100x61x115mm |
| Color: | Black |
| Installation: | Wall mounting |
| Material / color: | Polycarbonate plastic, black |
| Power supply: | 12 - 24 V AC/DC, 12 – 24 V AC / DC |
| Temperature range: | -30 °C bis 50 °C |
The wall base module is suitable for System M; a compact and modular system. The depth base module can be combined with a light (Warn, Blitz, Kombi) or a sounder from System M.
The housing is made of sturdy polycarbonate plastic in the colour black and can be screwed directly to the wall.
Note:
The connection terminals are designed for max. 1.5 qmm
The sounder module is suitable for the System M; a compact and modular system. The sounder has two functions (Alarm 1, Alarm 2). In addition, the module has 32 tones that can be used via DIP switch A; a further 32 tones can be set via DIP switch B. The extremely high volume is set via integrated push-buttons. This product requires a base module, please order this separately. Matching base modules (System M): Flat base module, BMF 8911, item no. 38911 Basic module deep, BMT 8912, item no. 38912 Basic module wall, BMW 8913, item no. 38913 Double basic module, BDW 8916, item no. 38916 Flat basic module, BMF 8991, item no. 38991 Basic module deep, BMT 8992, item no. 38992 BME 8993, item no. 38993
The LED combination light is suitable for System M; a compact and modular system. The combination light can be combined with any System M base module and has three functions: Warning, Alarm 1 and Alarm 2. The functions can be controlled independently using separate contacts. The warning is signalled by a triple strobe light. The alarm can either be signalled as a strobe flash with 32 tones using DIP switch A or with a continuous light and also 32 tones using DIP switch B. Note: A base module is required for this product, please order separately.

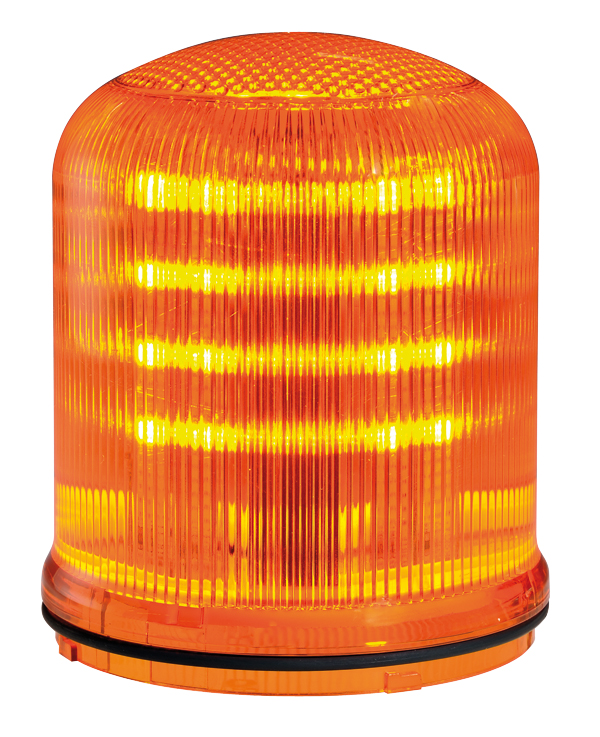

The LED warning light is suitable for System M; a compact and modular system. The warning light can be combined with any System M base module and has three functions: Permanent, rotating or flashing light. Note: A base module is required for this product, please order separately.
The LED multi-light is suitable for System M; a compact and modular system. The multi-light can be combined with any System M base module and has three colours: red, yellow, green and, like the light intensity and light mode, can be controlled independently using integrated push-buttons. The light intensity can be set in the following steps: (33%, 66%, 100%). A base module is required for this product, please order separately.
