Entrypanel V2A 5 App.
Entrypanel V2A 5 App.
- Floor plate for five residential units
- Five bell buttons
- Surface-mounted variant
- Five LED nameplates (white)
- Brushed V2A stainless steel
- Surface mounting
- Surface-mounted frame included
- Mounting screws included
| Device type: | Tiered plate |
|---|---|

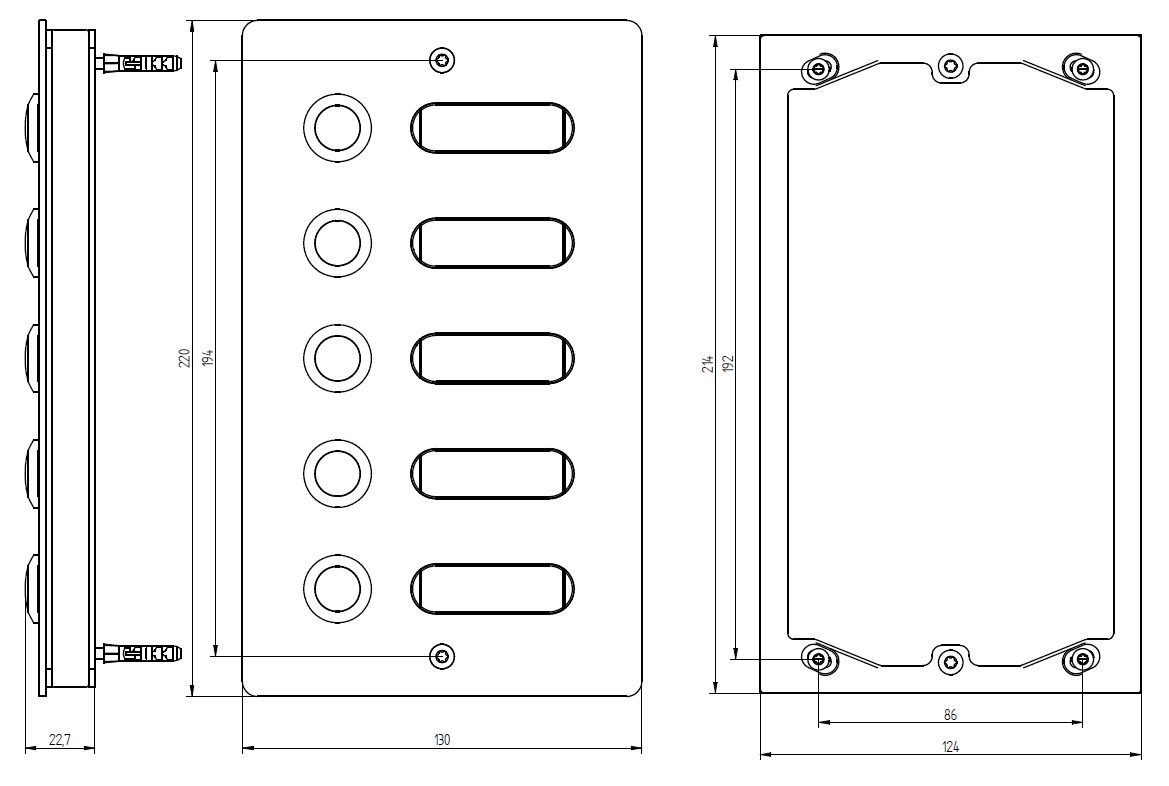

| Dimensions: | 130x220x19mm |
| Button: | Protact 150 VA |
| Form: | Rectangular |
| Installation: | Surface-mounted |
| Material: | Stainless steel V2A |
| Nameplate: | LED (White) |
| Number of buttons: | 5 |
| Operating temperature: | -20 °C bis 60 °C |
| Power supply: | 12V AC/DC, 1.5A |
| Power supply nameplates: | LED-Namensschild: 8 – 16 V AC / DC 20 – 40 mA |
Etagenplatte V2A ETA 505 für 5 WE– Moderne, robuste Klingelplatte für Mehrfamilienhäuser
Suchen Sie eine langlebige, ästhetisch ansprechende und funktionale Klingellösung für ein Mehrfamilienhaus? Die Etagenplatte V2A 5 WE ETA 505 aus gebürstetem Edelstahl bietet erstklassige Qualität, zeitlose Eleganz und hohe Funktionalität – perfekt für Ihren Hauseingang.
Überblick – Das zeichnet die Etagenplatte V2A 5 WE aus
- Für fünf Wohneinheiten – Fünf hochwertige Klingeltaster mit präziser taktiler Rückmeldung
- Weiße LED-Namensschilder – Jederzeit optimale Lesbarkeit, auch bei Dunkelheit
- Gebürsteter Edelstahl V2A – Elegantes, modernes Design mit abgerundeten Ecken
- Aufputz-Montage – Flexibel und unkompliziert installierbar
- Wetterfest & langlebig – Für den anspruchsvollen Einsatz im Außenbereich
- Kompakte Maße – 130 x 220 x 19 mm für eine optimale Integration an Fassaden
- Sichere Spannungsversorgung (12 V AC / DC, 1,5 A, LED-Namensschilder: 8–16 V AC/DC)
Robustes Material – Gebürsteter Edelstahl V2A
Die Klingelplatte wird aus hochwertigem Edelstahl V2A gefertigt. Dieses Material steht für exzellente Widerstandsfähigkeit gegen Korrosion, was besonders im Außenbereich unverzichtbar ist. Selbst bei widrigsten Wetterbedingungen (-20 °C bis +60 °C) bleibt die Platte formschön, rostfrei und zuverlässig. Die gebürstete Oberfläche sorgt für einen modernen Look, der zeitlos wirkt und sich optimal in jede Gebäudeästhetik integriert.
Benutzerorientierte Bedienung – PROTACT-Klingelknöpfe und LED-Namensschilder
Jeder einzelne Klingeltaster ist mit einem PROTACT 150 VA Klingelknopf ausgestattet. Die bewährte Technologie sorgt mit taktiler Rückmeldung für ein eindeutiges Bediengefühl und bietet Besuchern wie Bewohnern höchste Zuverlässigkeit.
Die weiß beleuchteten LED-Namensschilder der Etagenplatte setzen beste Sichtbarkeit im Fokus. Namen bleiben bei allen Lichtverhältnissen gut erkennbar – tagsüber wie nachts. So finden Besucher, Paketboten oder Dienstleister auf Anhieb die richtige Wohneinheit, was Komfort und Sicherheit zusätzlich erhöht.
Einfache Installation und langlebiger Einsatz
Die Etagenplatte V2A 5 WE ETA 505 V2A AP ist speziell auf einen unkomplizierten Einbau ausgelegt. Durch ihre Aufputzmontage lässt sie sich schnell, sauber und flexibel an (fast) jeder Hausfassade anbringen. Alle benötigten Befestigungselemente sind bereits im Lieferumfang enthalten – das reduziert Montagezeiten und garantiert einen passgenauen Sitz. Besonders Installateure und Elektrofachbetriebe profitieren von der durchdachten Konstruktion, die Fehlausrichtungen minimiert und für einen sicheren Halt sorgt.
Dank der robusten Edelstahl-Komponenten und der spritzwassergeschützten Verarbeitung hält die Klingelplatte selbst extremen Umwelteinflüssen problemlos stand. Dies führt zu einer langen Nutzungsdauer und reduziert Wartungsaufwand sowie Ersatzteilbedarf erheblich.
Ihre Vorteile im Überblick
- Hohe Investitionssicherheit durch langlebige Materialien
- Moderner Look für einen gepflegten, einladenden Eingangsbereich
- Optimale Nutzerfreundlichkeit durch klare Namensschildbeleuchtung und taktile Taster
- Maximale Flexibilität durch einfache Aufputzmontage
- Für alle Witterungsbedingungen geeignet – optimale Funktionssicherheit zu jeder Jahreszeit
- Ideal für Wohn-, Geschäfts- und Bürogebäude mit bis zu fünf Parteien
Warum eine Klingelplatte aus gebürstetem Edelstahl wählen?
Edelstahl V2A gilt als eines der widerstandsfähigsten Materialien im Bereich Gebäudetechnik – es ist korrosionsbeständig, hygienisch und behält auch nach Jahren seinen edlen Charakter. Die gebürstete Oberfläche unterstreicht nicht nur den exklusiven Look Ihres Eingangsbereichs, sondern verringert auch die Sichtbarkeit von Fingerabdrücken und Kratzern.
Die spezielle PROTACT-Technologie der Klingeltaster garantiert ein zuverlässiges, angenehmes Klickgefühl. Die Rückmeldung sorgt dafür, dass jeder Tastendruck eindeutig zu spüren und zu hören ist – das erhöht die Nutzerzufriedenheit und reduziert Fehlbedienungen auf ein Minimum.
Fazit: Die Premium-Klingel für Mehrfamilienhäuser, die Eindruck hinterlässt
Die Etagenplatte V2A 5 WE ETA 505 V2A AP ist die ideale Wahl für alle, die eine robuste, edle und funktionale Klingelanlage suchen. Sie profitieren von überragender Material- und Verarbeitungsqualität, zeitlosem Design sowie cleveren Funktionen wie taktilen Klingelknöpfen und LED-beleuchteten Namensschildern. Perfekt geeignet für Mehrfamilienhäuser, Wohnkomplexe, Geschäftsgebäude und viele weitere Anwendungsfälle.
Setzen Sie auf eine Eingangslösung, die durch Komfort, Sicherheit und Design überzeugt – mit einer Etagenplatte aus Edelstahl V2A, entwickelt für höchste Ansprüche und intensiven Einsatz.
