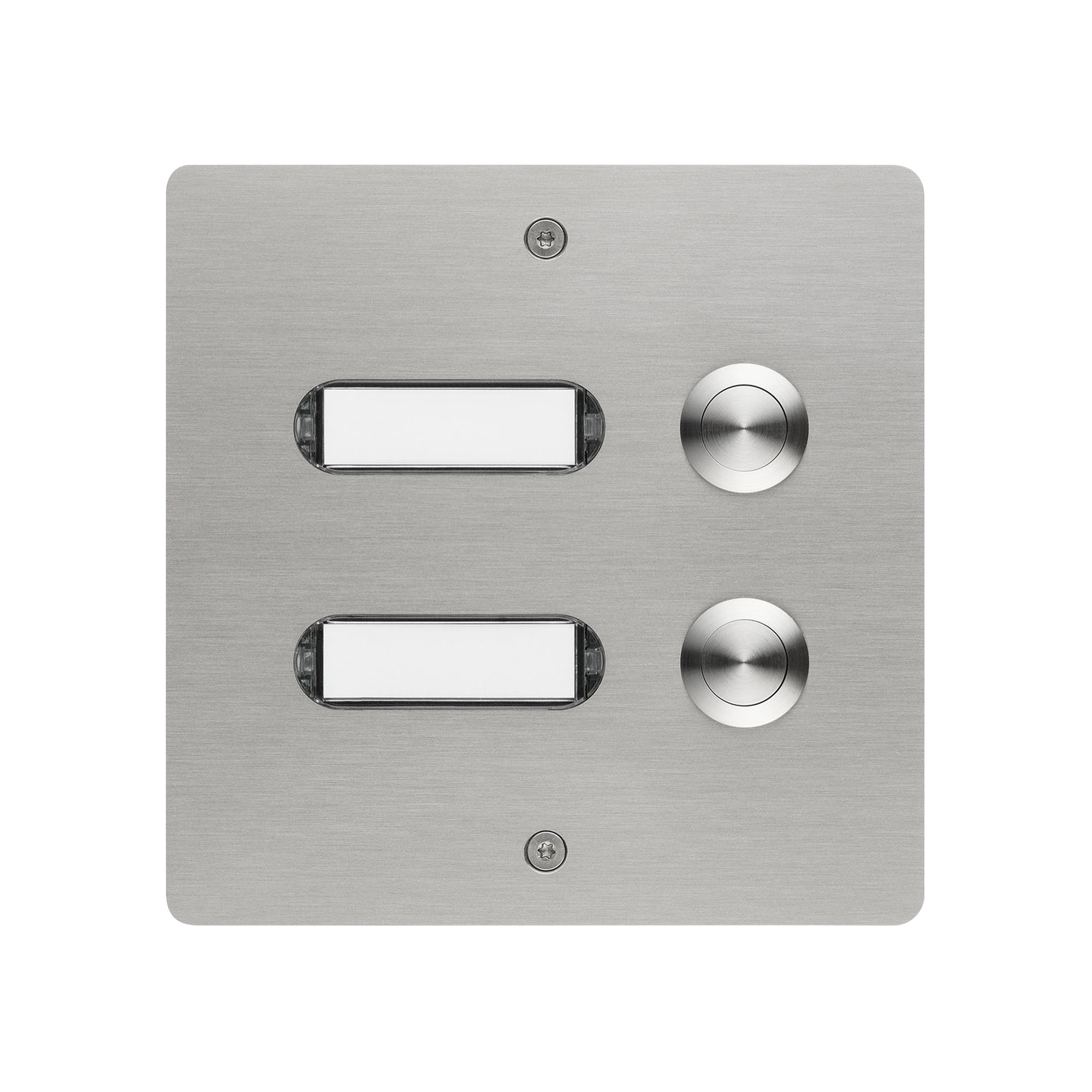

Entrypanel V2A 2 App.
Entrypanel V2A 2 App.
- Floor plate for two residential units
- Two bell buttons
- Surface-mounted variant
- Two LED nameplates (white)
- Brushed V2A stainless steel
- Surface mounting
- Surface-mounted frame included
- Mounting screws included
| Device type: | Bell button simple |
|---|---|

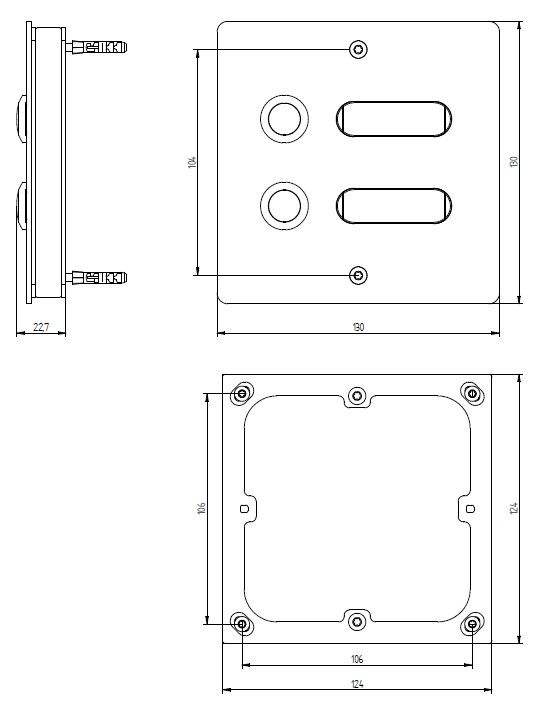

| Dimensions: | 130x130x19mm |
| Button: | Protact 150 VA |
| Form: | Square |
| Installation: | Surface-mounted |
| Material: | Stainless steel V2A |
| Nameplate: | LED (White) |
| Number of buttons: | 2 |
| Operating temperature: | -20 °C bis 60 °C |
| Power supply: | 12 V AC / DC 1,5 A |
| Power supply nameplates: | LED-Namensschild: 8 – 16 V AC / DC 20 – 40 mA |
Aufputz-Etagenplatte V2A 2 WE ETA 502 – Die moderne Türklingel-Lösung für Mehrfamilienhäuser
Mit der Aufputz-Etagenplatte V2A 2 WE ETA 502 zeigen Sie Stil, Modernität und Qualitätsbewusstsein bereits an Ihrem Hauseingang. Dieses hochwertige Produkt aus robustem V2A Edelstahl setzt neue Maßstäbe in puncto Design, Funktion und Langlebigkeit – perfekt geeignet für den Einsatz in Mehrparteienhäusern, Wohnanlagen, Bürogebäuden oder Doppelhaushälften. Profitieren Sie von einer Klingelplatte, die mehr bietet: Stilvolles Design, außergewöhnliche Robustheit und optimale Funktionalität auch bei anspruchsvollen Witterungsbedingungen.
Produktmerkmale im Überblick
- Moderne, zeitlose Optik: Quadratische Etagenplatte mit gebürsteter Oberfläche für einen stillvollen Eingangsbereich.
- Ausgezeichnete Materialqualität: Aus V2A Edelstahl gefertigt, korrosions- und witterungsbeständig, ideal für den Außenbereich.
- Doppeltaster-Lösung: Perfekt für zwei Wohneinheiten (2 Taster), optimal für Mehrfamilien- oder Zweiparteienhäuser konzipiert.
- Hochwertige Technik: Zwei Klingeltaster der bewährten PROTACT 150 VA-Serie sorgen für angenehme und zuverlässige taktile Rückmeldung.
- LED-Namensschilder: Weiße und energiesparende LED-Beleuchtung gewährleistet beste Lesbarkeit der Namensschilder – Tag und Nacht.
- Einfache Installation: Aufputzmontage inkl. stabilen Aufputzrahmen und sämtlichem Montagezubehör (Befestigungsschrauben wird mitgeliefert).
- Kompatible Spannungsversorgung: Klingeltaster mit 12 V AC / DC, Namensschild mit 8–16 V AC/DC, geringe Stromaufnahme.
- Kompakte Maße: 130 x 130 x 19 mm – vielseitig einsetzbar und dezente Integration in nahezu jede Fassade.
- Großer Temperaturbereich: Voll funktionsfähig von -20 °C bis +60 °C – bereit für jede Jahreszeit.
Gebürsteter Edelstahl V2A – Zeitlose Optik und robuste Qualität
Die Verarbeitung aus Edelstahl V2A verleiht der Etagenplatte eine faszinierende Haptik und sorgt gleichzeitig für außergewöhnliche Beständigkeit gegenüber Korrosion, Schmutz und mechanischen Einflüssen. Die gebürstete Oberfläche wirkt besonders edel und unterstreicht jeden Hauseingang mit einem modern-zeitlosen Charakter. Auch nach Jahren im Freien behält die Platte ihr ansprechendes Aussehen – das macht den ETA 502 V2A AP zur langfristigen Investition.
Innovative PROTACT Klingeltaster – Mehr Komfort durch taktile Rückmeldung
Die verbauten PROTACT 150 VA Klingelknöpfe heben sich durch ihre zuverlässige taktile Rückmeldung hervor. Jeder Tasterdruck wird eindeutig spürbar, was eine optimale Bedienbarkeit garantiert – selbst bei feuchter Witterung oder mit Handschuhen. Der Mechanismus ist auf hohe Schaltleistung ausgelegt, sodass auch bei häufiger Nutzung eine langanhaltende Funktionalität sichergestellt ist.
Namensschilder mit LED-Beleuchtung – Immer klar lesbar
Die im Lieferumfang enthaltenen Namensschilder verfügen über energieeffiziente weiße LEDs, die eine gleichmäßige und helle Beleuchtung gewährleisten. Damit ist der Name jeder Partei auch bei Dunkelheit oder widrigen Lichtverhältnissen zuverlässig erkennbar – ein wichtiger Pluspunkt für Besucher, Zusteller oder Notdienste. Das hochwertige LED-System ist langlebig und benötigt nur minimalen Wartungsaufwand.
Einfache und sichere Montage – Inklusive Zubehör
Die Etagenplatte ist für die Aufputzmontage konzipiert. Aufputzrahmen und alle notwendigen Befestigungsschrauben sind bereits im Lieferumfang enthalten. Dadurch gelingt Ihnen die Montage schnell und unkompliziert – ganz ohne Spezialwerkzeug oder bauliche Änderungen am Mauerwerk. Der Anschluss an die gängige 12 V AC/DC Klingelspannung sowie an die separate LED-Spannungsversorgung (8–16 V AC/DC) ist problemlos möglich.
Fazit – Die optimale Klingellösung für ein modernes Zuhause
Mit der Etagenplatte V2A 2 WE ETA 502 V2A AP entscheiden Sie sich für einen innovativen und zugleich zeitlos schönen Türgong, der Funktion und Eleganz auf höchstem Niveau vereint. Die durchdachte Kombination aus extrem widerstandsfähigem Edelstahl V2A, PROTACT Klingelknöpfen mit taktiler Rückmeldung und leuchtstarken LED-Namensschildern eröffnet Ihnen alle Möglichkeiten, Ihre Immobilie zukunftssicher und repräsentativ auszustatten.
Wenn Sie eine hochwertige und langlebige Klingellösung für zwei Wohneinheiten suchen – sei es für einen Neubau, eine Modernisierung oder ein Renovierungsprojekt –, ist diese Etagenplatte die perfekte Wahl. Sie profitieren von kompromissloser Qualität, einfacher Installation und einer nachhaltigen Wertsteigerung Ihrer Immobilie.
Setzen Sie auf bewährte Technik, modernes Design und maximalen Bedienkomfort – für einen Hauseingang, der überzeugt!
